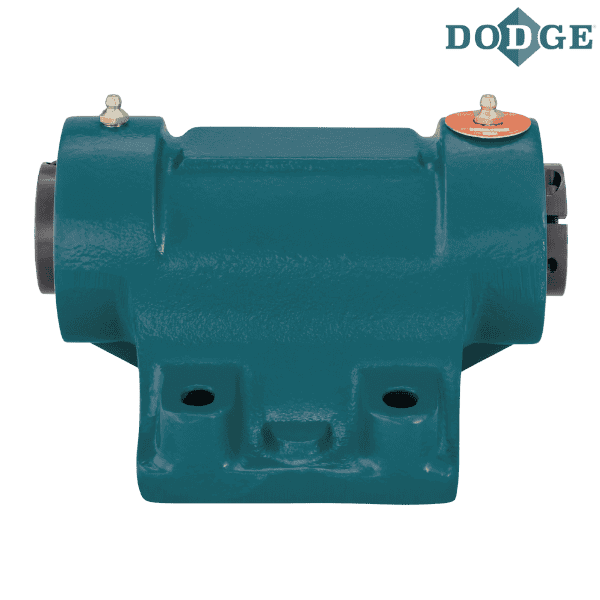

134197 DODGE - F&B-CC-207-DL

Brand - DODGE
Item Number - 134197 DODGE - F&B-CC-207-DL
Category - Ball Bearings (CC DL Fan and Blower Pillow Blocks)
Series - 212
Shaft Size (inch) - 2.4375
Description - F&B-CC-207-DL
Weight (lbs) - 55

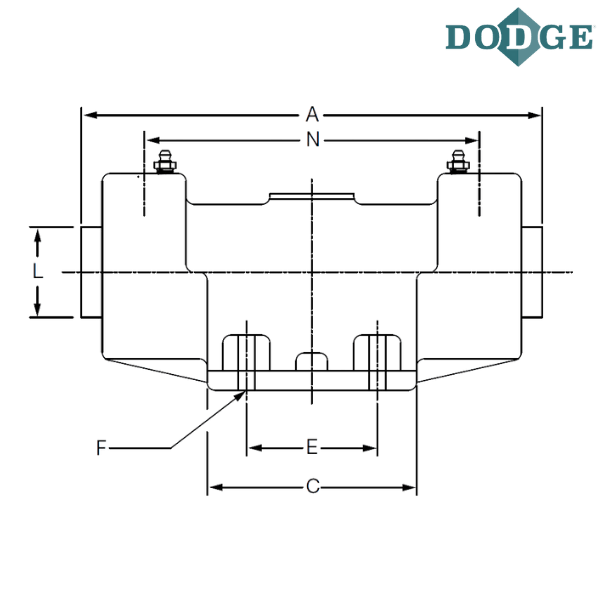

Length Through Bore (A) inch - 13.86

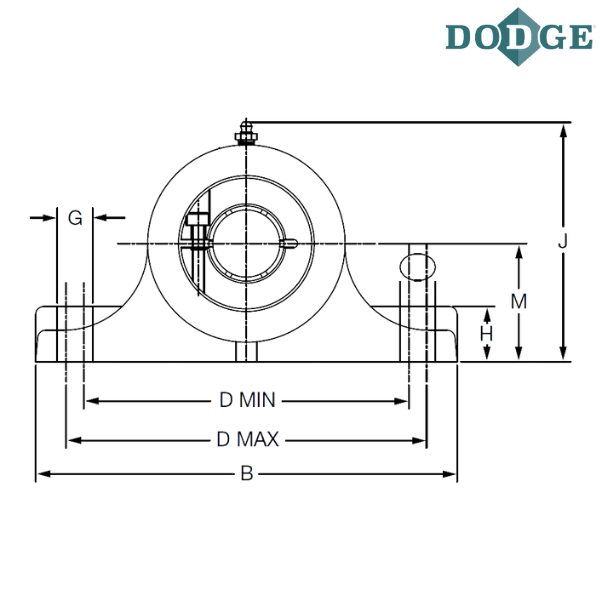

Overall Length (B) inch - 12
C (inch) - 7
Bolt to Bolt Minimum Distance (D min) inch - 9
Bolt to Bolt Maximum Distance (D max) inch - 10
Bolt Width (E) inch - 4
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.13
H (inch) - 1.75
Overall Height (J) inch - 6.44
L (inch) - 4.11
Base to Center Height (M) inch - 3.5
Bearing Centers (BC) inch - 10.91
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
