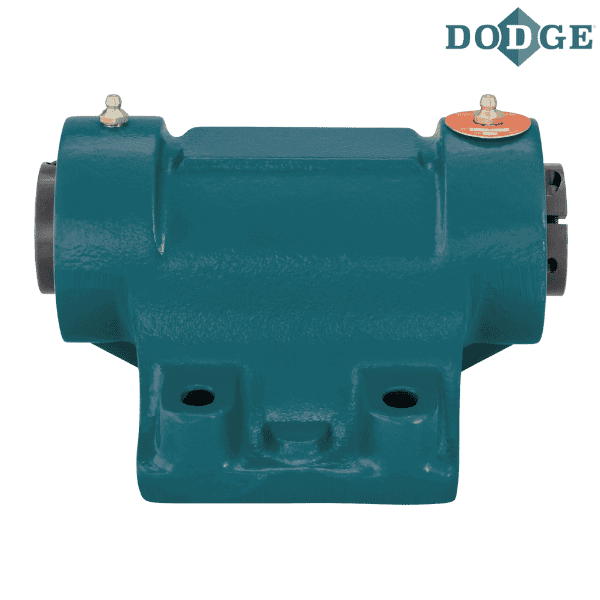

134190 DODGE - F&B-CC-104-DL

Brand - DODGE
Item Number - 134190 DODGE - F&B-CC-104-DL
Category - Ball Bearings (CC DL Fan and Blower Pillow Blocks)
Series - 207
Shaft Size (inch) - 1.25
Description - F&B-CC-104-DL
Weight (lbs) - 32.71

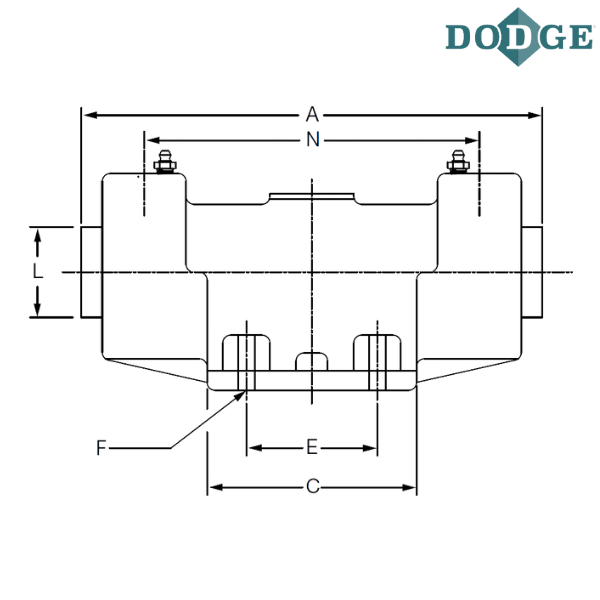

Length Through Bore (A) inch - 10.35

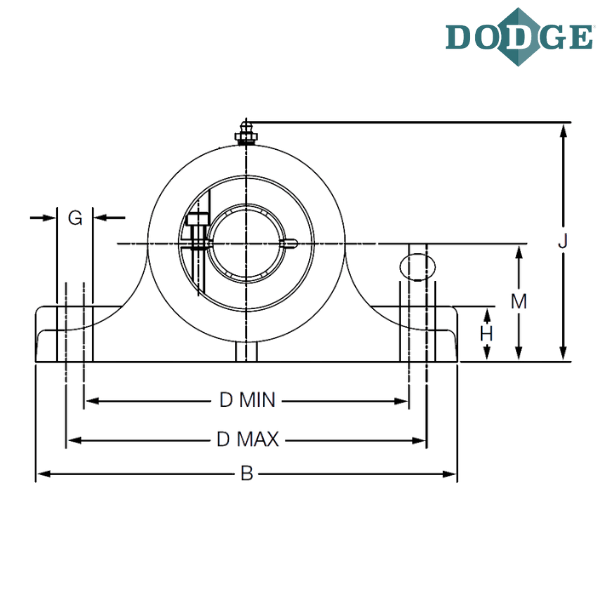

Overall Length (B) inch - 10
C (inch) - 5.5
Bolt to Bolt Minimum Distance (D min) inch - 7.75
Bolt to Bolt Maximum Distance (D max) inch - 8.25
Bolt Width (E) inch - 3.5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.88
H (inch) - 1.56
Overall Height (J) inch - 5.63
L (inch) - 2.69
Base to Center Height (M) inch - 3
Bearing Centers (BC) inch - 8.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
DL - Wide inner ring, normal duty, concentric clamp collar

** Images are for representation purposes only
