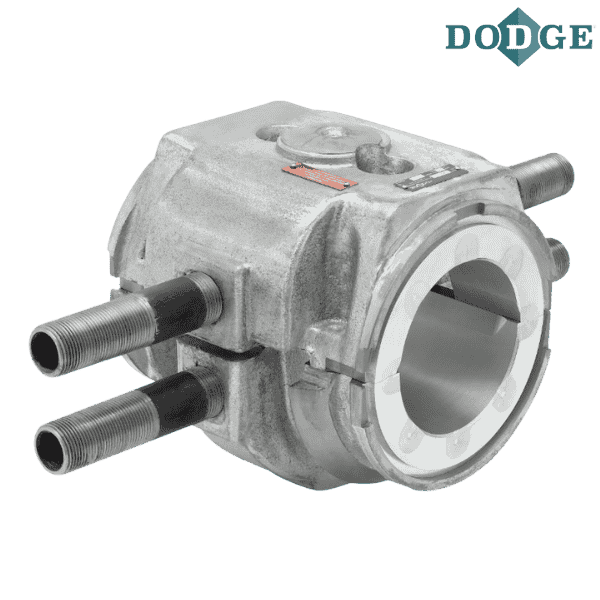

133595 DODGE - 7 WC REPL LINER ASSEMBLY

Brand - DODGE
Item Number - 133595 DODGE - 7 WC REPL LINER ASSEMBLY
Category - Plain / Externally Cooled Standard and Short Series Sleeveoil Pillow Blocks (R Series)
Shaft Size (inch) - 7
Description - 7 WC REPL LINER ASSEMBLY
Weight (lbs) - 216
STL Item Number - 134205 DODGE - 7 STL PLXC EXPANSION PILLOW BLOCK
Weight of STL (lbs) - 882
SSL Item Number - 134212 DODGE - 7 SSL PLXC PILLOW BLOCK
Weight of SSL (lbs) - 845
Split Thrust Collar Item Number * - 133296 DODGE - COLLAR-SPLIT-THRUST-700-PLXC
Weight of Split Thrust Collar (lbs) - 31.3
Replacement Liner Assemblies Item Number (PL-XC) - 132957 DODGE - 7 SLV PLXC LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 230
Auxiliary Seal Kits Item Number ** - 133937 DODGE - 7 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 19.0
Housing End Cap Kits Item Number - 132548 DODGE - 7 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 13.5
Heater / Thermostat Item Number (120 Volt) - 434725 DODGE - 260W-120V IMMERSION HTR/T-STAT COMBO
Weight of Heater / Thermostat (lbs) - 2.5
Circulating Oil Inlet Kits Item Number *** - 430155 DODGE - 5712 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Neoprene End Closures Item Number **** - 133993 DODGE - 7 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - 1.2
Pipe Grommet Kits Item Number *** - 132198 DODGE - 6 - 7 - 8 R SERIES GRMT KIT
Weight of Pipe Grommet Kit (lbs) - 3.6

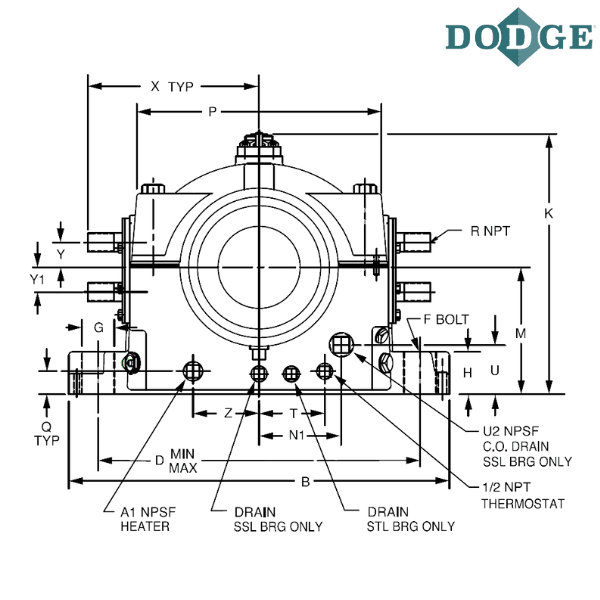

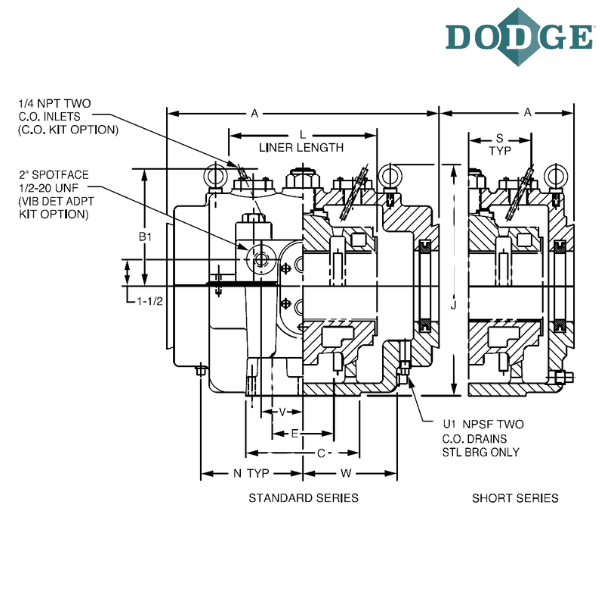

A (inch) - 24.5
Overall Length (B) inch - 29.75
C (inch) - 12.5
Bolt to Bolt Minimum Distance (D min) inch - 22.625
Bolt to Bolt Maximum Distance (D max) inch - 25.375
E (inch) - 6.5
F-Bolt Diameter (inch) - 1.5
G (inch) - 3
H (inch) - 5.125
Overall Height (J) inch - 19.4375
K (inch) - 20.25
L (inch) - 14
Base to Center Height (M) inch - 9.5
N (inch) - 9.5625
P (inch) - 17
Q (inch) - 2
R (inch) - 0.75
T (inch) - 5
U (inch) - 3.75
U1 (inch) - 1.25
V (inch) - 4.5
W (inch) - 8.375
X (inch) - 12.9375
Y (inch) - 1.25
Y1 (inch) - 1.25
Z (inch) - 5
A1 (inch) - 1
B1 (inch) - 10.875

Notes :
WC - Water Cooled

* 2 Collars Required To Make A Non-Expansion STL Pillow Block
** One required per pillow block end
*** One required per pillow block
**** Two required per 3-15/16 thru 4-15/16 sizes; three for 5-7/16 and larger

***** Images are for representation purposes only
