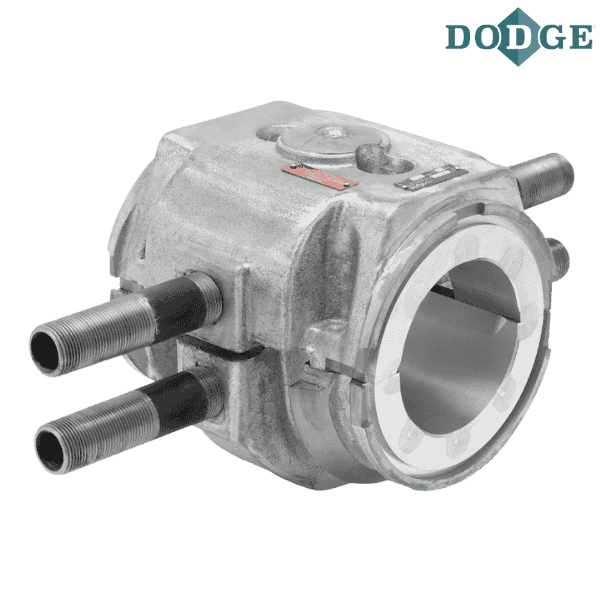

133594 DODGE - 6 WC REPL LINER ASSEMBLY

Brand - DODGE
Item Number - 133594 DODGE - 6 WC REPL LINER ASSEMBLY
Category - Plain / Externally Cooled Standard and Short Series Sleeveoil Pillow Blocks (R Series)
Shaft Size (inch) - 6
Description - 6 WC REPL LINER ASSEMBLY
Weight (lbs) - 158
STL Item Number - 134204 DODGE - 6 STL PLXC EXP PIL BLOCK
Weight of STL (lbs) - 598
SSL Item Number - 134211 DODGE - 6 SSL PLXC PILLOW BLOCK
Weight of SSL (lbs) - 570
Split Thrust Collar Item Number * - 133295 DODGE - COLLAR-SPLIT-THRUST-600-PLXC
Weight of Split Thrust Collar (lbs) - 15.3
Replacement Liner Assemblies Item Number (PL-XC) - 132956 DODGE - 6 PLXC LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 158
Auxiliary Seal Kits Item Number ** - 133933 DODGE - 6 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 14.8
Housing End Cap Kits Item Number - 132547 DODGE - 6 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 10.6
Heater / Thermostat Item Number (120 Volt) - 434725 DODGE - 260W-120V IMMERSION HTR/T-STAT COMBO
Weight of Heater / Thermostat (lbs) - 2.5
Circulating Oil Inlet Kits Item Number *** - 430155 DODGE - 5712 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Neoprene End Closures Item Number **** - 133992 DODGE - 6 SLV NEOPRERE END CLOSURE
Weight of Neoprene End Closure (lbs) - .8
Pipe Grommet Kits Item Number *** - 132198 DODGE - 6 - 7 - 8 R SERIES GRMT KIT
Weight of Pipe Grommet Kit (lbs) - 3.6

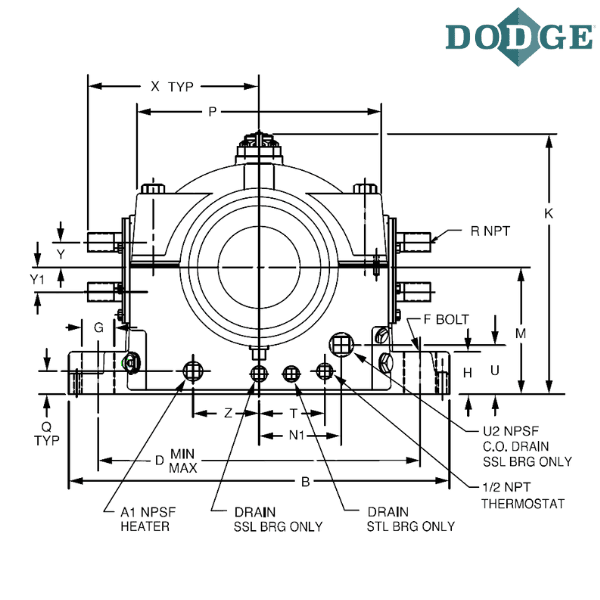

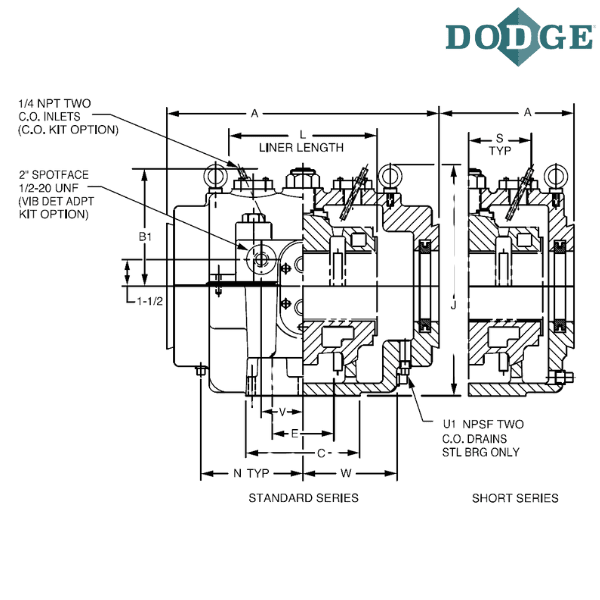

A (inch) - 21.25
Overall Length (B) inch - 26
C (inch) - 10.5
Bolt to Bolt Minimum Distance (D min) inch - 19.625
Bolt to Bolt Maximum Distance (D max) inch - 21.875
E (inch) - 5.5
F-Bolt Diameter (inch) - 1.25
G (inch) - 2.5
H (inch) - 4
Overall Height (J) inch - 17.625
K (inch) - 18
L (inch) - 12
Base to Center Height (M) inch - 8.25
N (inch) - 8.25
P (inch) - 14.75
Q (inch) - 1.75
R (inch) - 0.75
T (inch) - 3.875
U (inch) - 3.125
U1 (inch) - 1
V (inch) - 4
W (inch) - 7.25
X (inch) - 11.1875
Y (inch) - 1.25
Y1 (inch) - 1.25
Z (inch) - 3.875
A1 (inch) - 1
B1 (inch) - 9.875

Notes :
WC - Water Cooled

* 2 Collars Required To Make A Non-Expansion STL Pillow Block
** One required per pillow block end
*** One required per pillow block
**** Two required per 3-15/16 thru 4-15/16 sizes; three for 5-7/16 and larger

***** Images are for representation purposes only
