133304 DODGE - 10 WC SLV SPLIT THRUST COLLAR

Brand - DODGE
Item Number - 133304 DODGE - 10 WC SLV SPLIT THRUST COLLAR
Category - XC Sleeveoil Pillow Block (R Series)
Description - 10 WC SLV SPLIT THRUST COLLAR
Weight (lbs) - 74
STL-XC Item Number - 132539 DODGE - 10 STL XC EXP PILLOW BLOCK
Weight of STL-XC (lbs) - 2000
SSL-XC Item Number - 133566 DODGE - 10 SSL XC PILLOW BLOCK
Weight of SSL-XC (lbs) - 1750
Auxiliary Seal Kits Item Number * - 132816 DODGE - 10 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 24.2
Housing End Cap Kit Item Number - 132565 DODGE - 10 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 16.4
Heater / Thermostat Item Number (120 Volt) - 434729 DODGE - 740W - 120V IMMERSION HTR/ T-STAT COMBO
Weight of Heater / Thermostat (lbs) - 4
Circulating Oil Inlet Kits Item Number ** - 430155 DODGE - 5712 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Neoprene End Closure Item Number * - 133995 DODGE - 10 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - 1.6
Liner Assemblies XC Item Number - 132594 DODGE - 10 XC LINER ASSEMBLY
Weight of Liner Assemblies XC (lbs) - 400

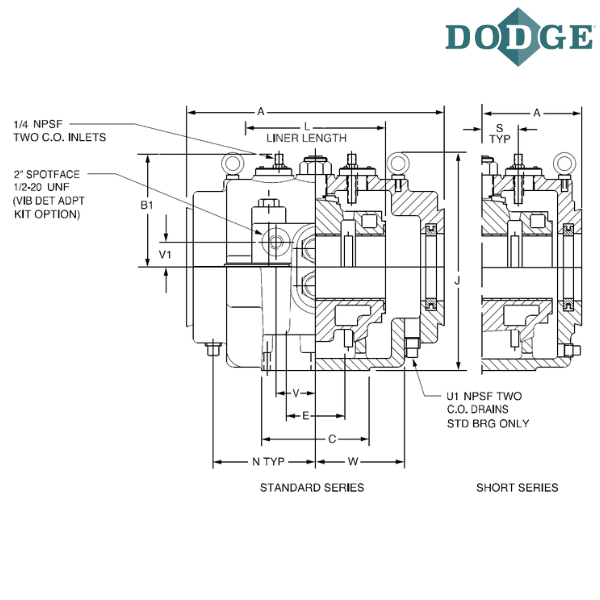

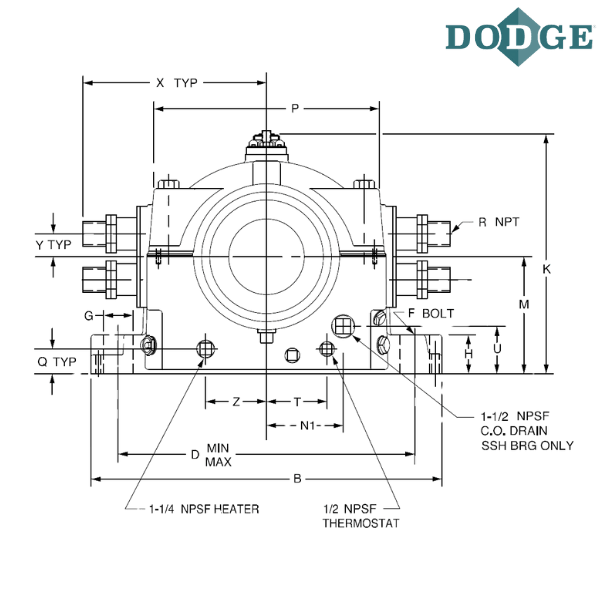

A (inch) - 30
Overall Length (B) inch - 40
C (inch) - 17
Bolt to Bolt Minimum Distance (D min) inch - 31.25
Bolt to Bolt Maximum Distance (D max) inch - 34.75
E (inch) - 9
F-Bolt Diameter (inch) - 2
G (inch) - 4
H (inch) - 6.75
J (inch) - 29.3125
Overall Height (K) inch - 28.25
L (inch) - 18
Base to Center Height (M) inch - 13.5
N (inch) - 12.375
P (inch) - 23.75
Q (inch) - 3
R (inch) - 1.5
S (inch) - 3.5
T (inch) - 7
U1 (inch) - 1.5
V (inch) - 7
V1 (Inch) - 2
W (inch) - 11
X (inch) - 17.5
Y (inch) - 2.625
Z (inch) - 7
B1 (inch) - 14.5

Notes:
WC - Water Cooled

* One required per pillow block end
** One required per pillow block

*** Images are for representation purposes only
