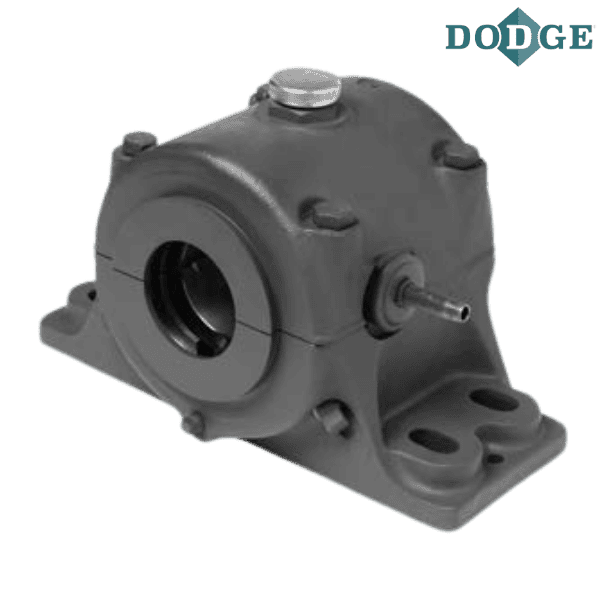

132992 DODGE - 3 7/16 SSL PL-WC PILLOW BLOCK

Brand - DODGE
Item Number - 132992 DODGE - 3 7/16 SSL PL-WC PILLOW BLOCK
Category - Plain-Water Cooled Standard and Short Series Sleeveoil Pillow Block (R Series)
Part Number - 132992 *
Description - 3 7/16 SSL PL-WC PILLOW BLOCK
Shaft Size (inch) - 3.4375
Weight (lbs) - 138
STL Item Number - 132990 DODGE - 3 7/16 STL PL-WC EXP PIL BLOCK
Weight of STL Pillow Block (lbs) - 144.0
Split Thrust Collar Item Number ** - 133280 DODGE - 3 7/16 SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 6.2
Neoprene End Closure Item Number *** - 133987 DODGE - 3 7/16 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - 0.31
Hose Kit Item Number - 133344 DODGE - SLEEVOIL FLEXIBLE WATER HOSE KIT
Weight of Hose Kit (lbs) - 0.5
Replacement PL-WC Liner Assemblies Item Number - 132951* DODGE - 3 7/16 PL-WC LINER ASSEMBLY
Weight of Replacement PL-WC Liner Assemblies (lbs) - 50

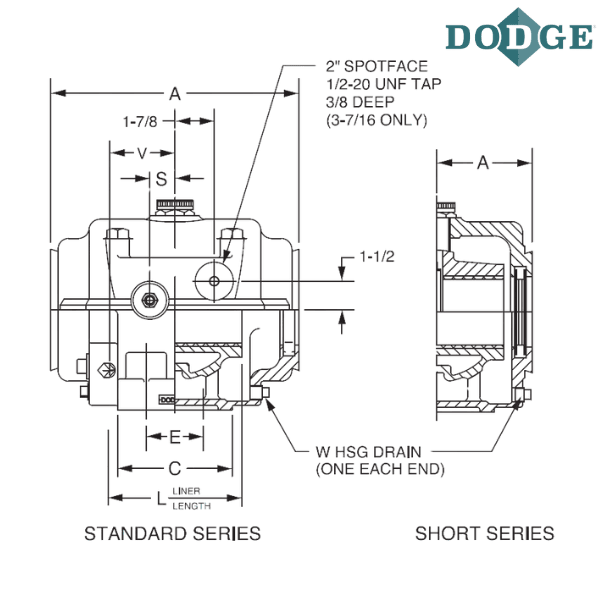

A (inch) - 10
Overall Length (B) inch - 17
Base Width (C) inch - 6
Bolt to Bolt Minimum Distance (D min) inch - 12.9375
Bolt to Bolt Maximum Distance (D max) inch - 14.0625
E (inch) - 3
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.5
H (inch) - 3
K (inch) - 11
L (inch) - 7
Base to Center Height (M) inch - 5.25
P (inch) - 9.375
S (inch) - 1.3125
U (inch) - 2
U1 (inch) - 0.5
V (inch) - 3.875
W (inch) - 0.5
X (inch) - 5.5

Notes :
SSL - Short Series Loaded
PL-WC - Plain/Water Cooled

* Pillow block and liner are pre-drilled for thermocouple (2 places)
** 2 Collars Required to Make A Non-Expansion Pillow Blocks
*** Used to close one end of pillow block. One required for sizes 1-7/16 thru 2-15/16. Two required for 3-7/16.

***** Images are for representation purposes only
