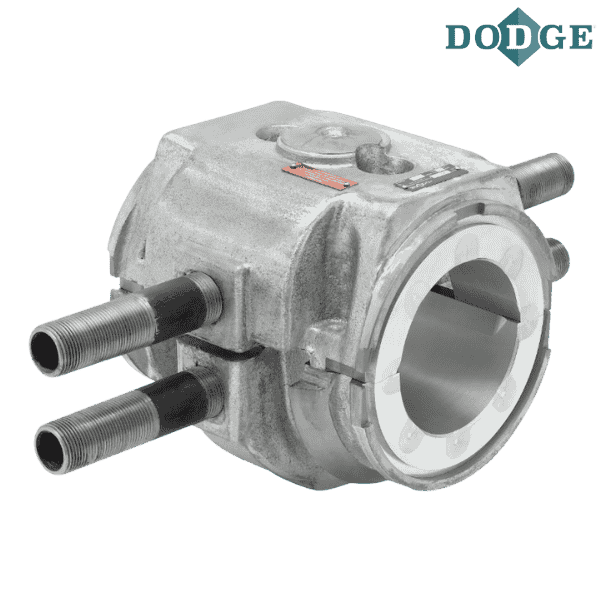

132954 DODGE - 4 15/16 PLXC LINER ASSEMBLY

Brand - DODGE
Item Number - 132954 DODGE - 4 15/16 PLXC LINER ASSEMBLY
Category - Plain / Externally Cooled Standard and Short Series Sleeveoil Pillow Blocks (R Series)
Shaft Size (inch) - 4.9375
Description - 4 15/16 PLXC LINER ASSEMBLY
Weight (lbs) - 92
STL Item Number - 134202 DODGE - 4 15/16 STL PLXC EXP PIL BLOCK
Weight of STL (lbs) - 362
SSL Item Number - 134209 DODGE - 4 15/16 SSL PLXC PILLOW BLOCK
Weight of SSL (lbs) - 324
Split Thrust Collar Item Number * - 133293 DODGE - 4 15/16 SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 11.3
Replacement Liner Assemblies Item Number (WC) - 133592 DODGE - 4 15/16 WC REPL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 91
Auxiliary Seal Kits Item Number ** - 432187 DODGE - 4 15/16 SLV AUX SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 7.5
Housing End Cap Kits Item Number - 432196 DODGE - 4 15/16 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 7.3
Heater / Thermostat Item Number (120 Volt) - 434721 DODGE - 175W-120V IMMERSION HEATER/T-STAT COMBO
Weight of Heater / Thermostat (lbs) - 1.0
Circulating Oil Inlet Kits Item Number *** - 430198 DODGE - 4715 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Neoprene End Closures Item Number **** - 133990 DODGE - 4 15/16 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - .5
Pipe Grommet Kits Item Number *** - 132193 DODGE - 4 15/16-5 7/16 R SERIES GRMT KIT
Weight of Pipe Grommet Kit (lbs) - 2.4

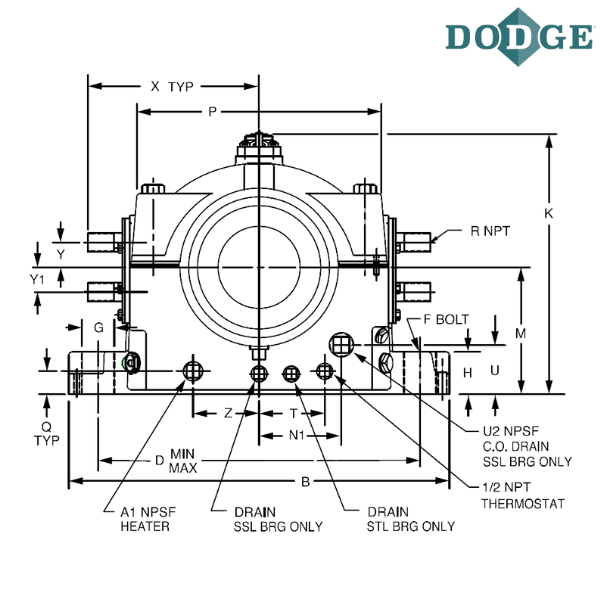

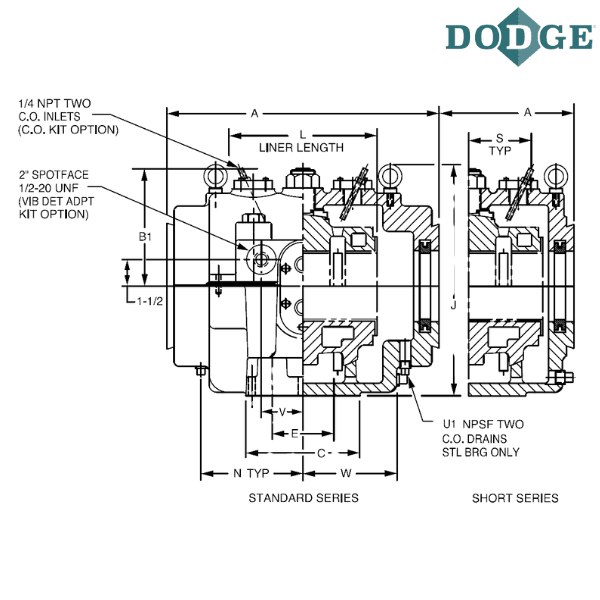

A (inch) - 18.25
Overall Length (B) inch - 22.5
C (inch) - 8.5
Bolt to Bolt Minimum Distance (D min) inch - 16.625
Bolt to Bolt Maximum Distance (D max) inch - 18.875
E (inch) - 4.5
F-Bolt Diameter (inch) - 1
G (inch) - *****
H (inch) - 3.125
Overall Height (J) inch - 15.875
K (inch) - 15.0625
L (inch) - 10
Base to Center Height (M) inch - 7
N (inch) - 7.0625
P (inch) - 12.5
Q (inch) - 1.3125
R (inch) - 1.25
T (inch) - 2.875
U (inch) - 3.3125
U1 (inch) - 1
V (inch) - 3.5
W (inch) - 6.125
X (inch) - 10
Y (inch) - 1.5
Y1 (inch) - 1.75
Z (inch) - 2.875
A1 (inch) - 0.75
B1 (inch) - 8

Notes :
PLXC - Plain/Externally Cooled

* 2 Collars Required To Make A Non-Expansion STL Pillow Block
** One required per pillow block end
*** One required per pillow block
**** Two required per 3-15/16 thru 4-15/16 sizes; three for 5-7/16 and larger
***** 2-1/4” on STL; 2” on SSL

****** Images are for representation purposes only
