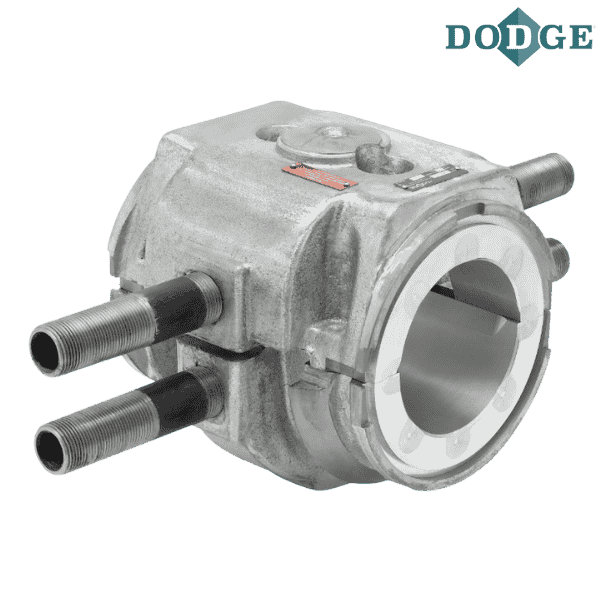

132952 DODGE - 3 15/16 PLXC LINER ASSEMBLY

Brand - DODGE
Item Number - 132952 DODGE - 3 15/16 PLXC LINER ASSEMBLY
Category - Plain / Externally Cooled Standard and Short Series Sleeveoil Pillow Blocks (R Series)
Shaft Size (inch) - 3.9375
Description - 3 15/16 PLXC LINER ASSEMBLY
Weight (lbs) - 51
STL Item Number - 134200 DODGE - 3 15/16 STL PLXC EXP PIL BLOCK
Weight of STL (lbs) - 201
SSL Item Number - 134207 DODGE - 3 15/16 SSL PLXC PILLOW BLOCK
Weight of SSL (lbs) - 193
Split Thrust Collar Item Number * - 133285 DODGE - 3 15/16 SLV SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 7.2
Replacement Liner Assemblies Item Number (WC) - 133590 DODGE - 3 15/16 WC REPL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 54
Auxiliary Seal Kits Item Number ** - 432181 DODGE - 3 15/16 SLV AUXILIARY SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 6.4
Housing End Cap Kits Item Number - 432190 DODGE - 3 15/16 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 6.1
Heater / Thermostat Item Number (120 Volt) - 434721 DODGE - 175W-120V IMMERSION HEATER/T-STAT COMBO
Weight of Heater / Thermostat (lbs) - 1.0
Circulating Oil Inlet Kits Item Number *** - 432153 DODGE - 3 15/16 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Neoprene End Closures Item Number **** - 133988 DODGE - 3 15/16 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - .3
Pipe Grommet Kits Item Number *** - 132192 DODGE - 3 15/16-4 7/16 R SERIES GRMT KIT
Weight of Pipe Grommet Kit (lbs) - 1.6

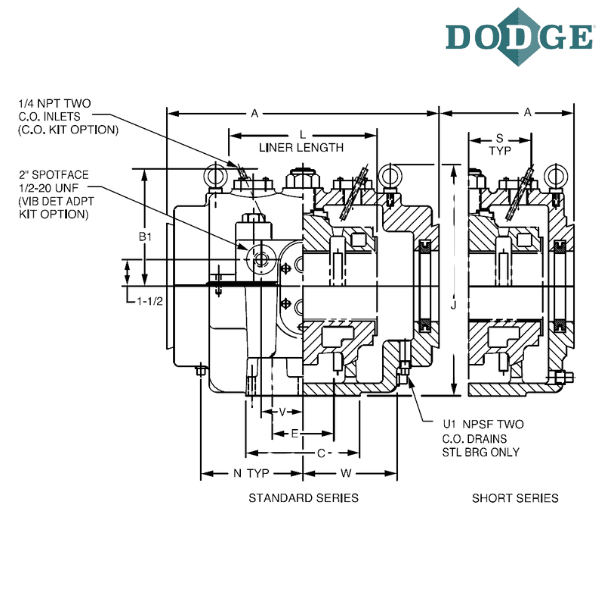

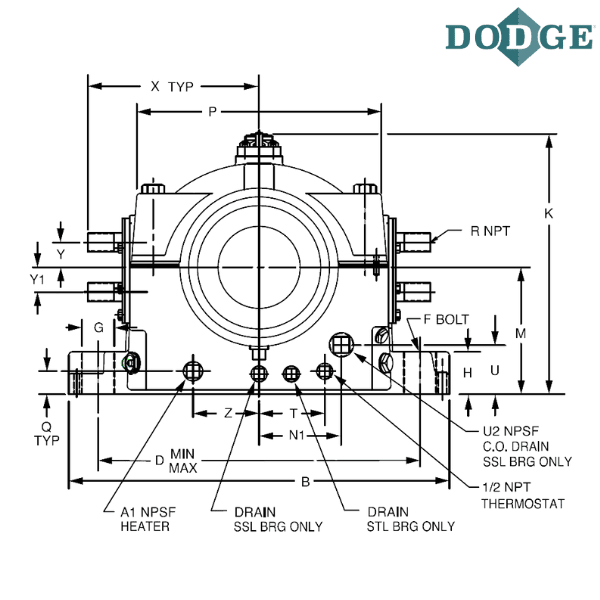

A (inch) - 15
Overall Length (B) inch - 19
C (inch) - 7
Bolt to Bolt Minimum Distance (D min) inch - 14.25
Bolt to Bolt Maximum Distance (D max) inch - 15.75
E (inch) - 3.5
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.75
H (inch) - 3
Overall Height (J) inch - 12.0625
K (inch) - 11.9375
L (inch) - 8
Base to Center Height (M) inch - 5.75
N (inch) - 5.9375
P (inch) - 10.125
Q (inch) - 1.25
R (inch) - 1
T (inch) - 2.125
U (inch) - 2.6875
U1 (inch) - 0.75
V (inch) - 3
W (inch) - 5
X (inch) - 8.5625
Y (inch) - 1.25
Y1 (inch) - 1.25
Z (inch) - 2.125
A1 (inch) - 0.75
B1 (inch) - 7.0625

Notes :
PLXC - Plain/Externally Cooled

* 2 Collars Required To Make A Non-Expansion STL Pillow Block
** One required per pillow block end
*** One required per pillow block
**** Two required per 3-15/16 thru 4-15/16 sizes; three for 5-7/16 and larger

***** Images are for representation purposes only
