Description
Brand - DODGE

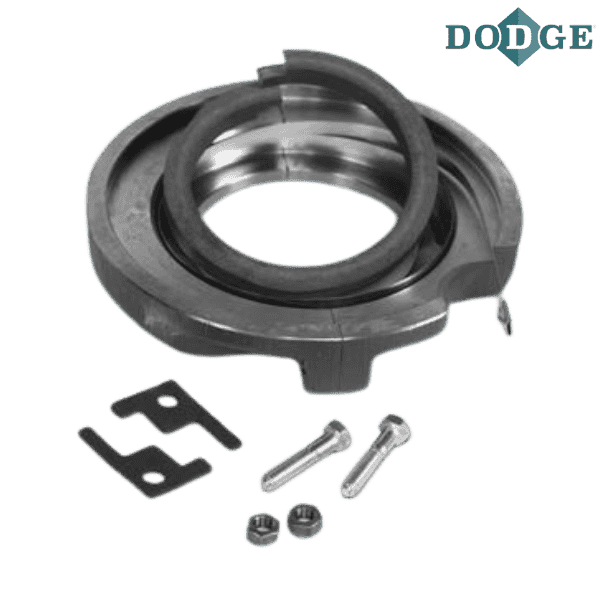

Item Number - 132814 DODGE - 9 SLV AUXILIARY SEAL KIT
Category - Auxiliary Seal Kits (Sleeveoil Accessories)
Description - 9 SLV AUXILIARY SEAL KIT
Bore Size (inch) - 9
Pillow Block Style - STL Plain, XC, SSL Plain, SSL, XC
Weight (lbs) - 23.1

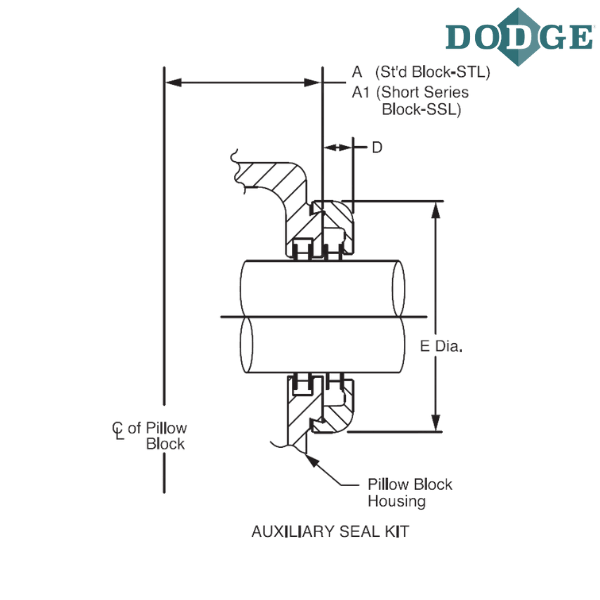

D (inch) - 1.3125
For STL, XC, SSL Plain Style Dimension of E (inch) - 14.5
For STL Plain Style Dimension of A (inch) - 13.875
For XC Style Dimension of A (inch) - 14.5
For SSL Plain Style Dimension of A1 (inch) - 10.5
For SSL and XC Style Dimension of A (inch) - 11.125
For SSL, XC Style Dimension of A1 (inch) - 8.5
For RTL Style Pillow Block Dimension of A (inch) - 13.875
** Images are for representation purposes only
