13259-4P SCHEERER

Brand - SCHEERER
Part Number - 13259-4P SCHEERER
Category - Four Point Angular Contact Ball Bearing, Metric Series
Configuration - Conrad Style Radial

Principal Dimensions & Specifications (Metric):
Inner Diameter (d) - 65 mm
Outer Diameter (D) - 135 mm
Width (b) - 22 mm
Weight (M) - 1.81 kg
Dynamic Capacity (C) - Available on Request
Static Capacity (Co) - Available on Request

Principal Dimensions & Specifications (Imperial):
Inner Diameter (d) - 2.559 inch
Outer Diameter (D) - 5.315 inch
Width (b) - 0.866 inch
Weight (M) - 4 lbs
Dynamic Capacity (C) - Available on Request
Static Capacity (Co) - Available on Request

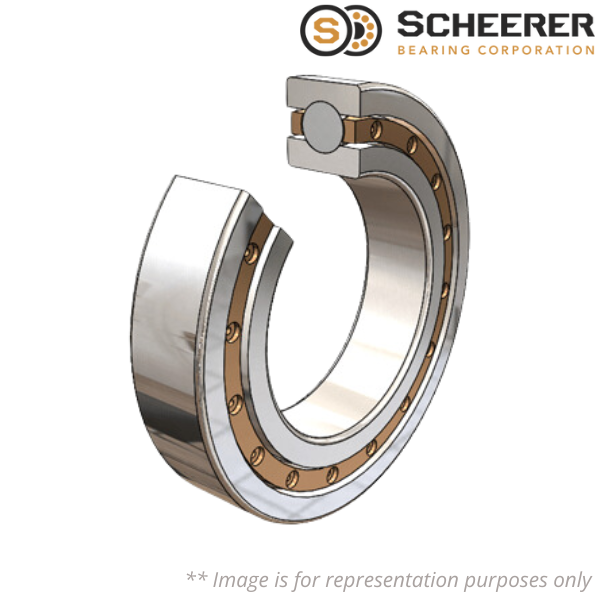

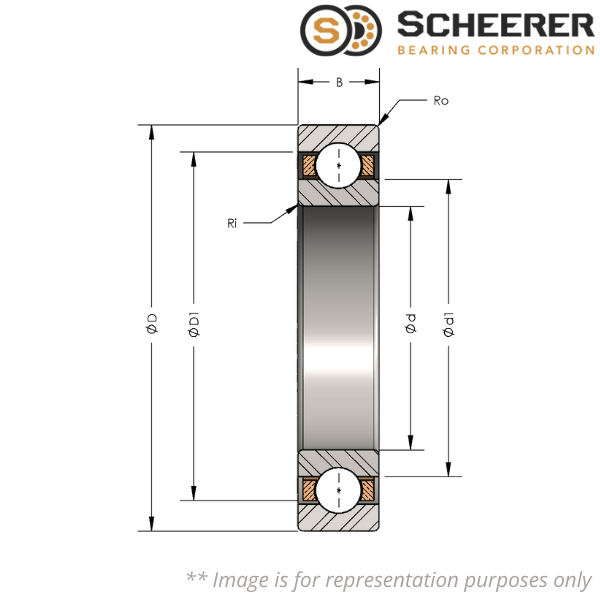

♦ ♦ Images are for representation purposes only
