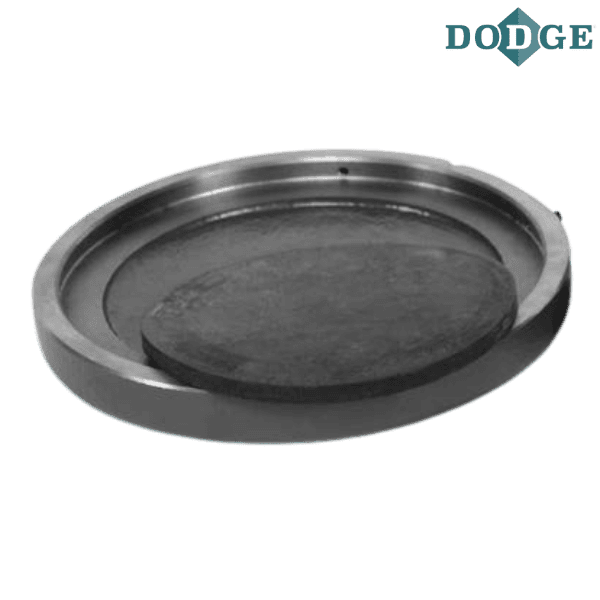

132565 DODGE - 10 SLV HOUSING END CAP KIT

Brand - DODGE
Item Number - 132565 DODGE - 10 SLV HOUSING END CAP KIT
Category - End Cup Kits (Sleeveoil Accessories)
Description - 10 SLV HOUSING END CAP KIT
Bore Size (inch) - 10
Pillow Block Style - STL Plain
Weight (lbs) - 16.4

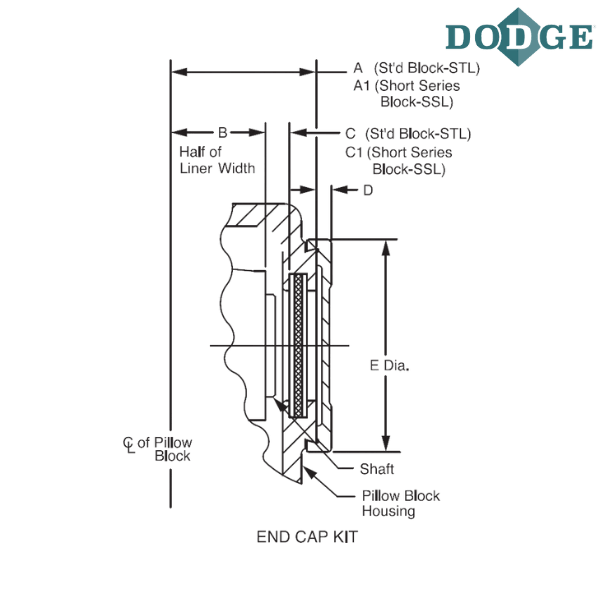

D (inch) - 0.5
E (inch) - 14.5

For STL Plain Style Pillow Block :
A (inch) - 13.875
B (inch) - 8
C (inch) * - 4.53125

For XC Style Pillow Block :
A (inch) - 15
B (inch) * - 9
C (inch) * - 4.65625

For SSL Style Pillow Block :
A1 (inch) - 10.5
B (inch) * - 8
C1 (inch) * - 1.15625

For Plain Style Pillow Block :
A1 (inch) - 10.5
B (inch) * - 8
C1 (inch) * - 1.15625

For SSL Style Pillow Block :
A1 (inch) - 11.625
B (inch) * - 9
C1 (inch) * - 1.28125

For XC Style Pillow Block :
A1 (inch) - 11.625
B (inch) * - 9
C1 (inch) * - 1.28125

For RTL Style Pillow Block :
A (inch) - 12.25
B (inch) * - 8.875
C (inch) * - 2.03125

* B+C (OR B+C1) = max. shaft penetration from center line of pillow block

** Images are for representation purposes only
