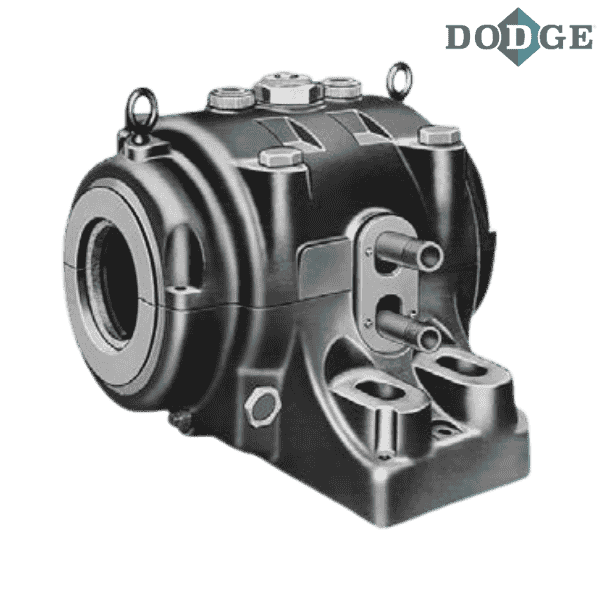

132538 DODGE - 9 STL XC EXP PILLOW BLOCK

Brand - DODGE
Item Number - 132538 DODGE - 9 STL XC EXP PILLOW BLOCK
Category - XC Sleeveoil Pillow Block (R Series)
Description - 9 STL XC EXP PILLOW BLOCK
Shaft Size (inch) - 9
Weight (lbs) - 1600
SSL-XC Item Number - 133565 DODGE - 9 SSL XC PILLOW BLOCK
Weight of SSL-XC (lbs) - 1500
XC Split Thrust Collar Item Number * - 133303 DODGE - COLLAR-SPLIT-THRUST-900-XC
Weight of XC Split Thrust Collar (lbs) - 57
Auxiliary Seal Kits Item Number ** - 132814 DODGE - 9 SLV AUX SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 23.1
Housing End Cap Kit Item Number - 132564 DODGE - 9" SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 15.9
Heater / Thermostat Item Number (120 Volt) - 434729 DODGE - 740W - 120V IMMERSION HTR/ T-STAT COMBO
Weight of Heater / Thermostat (lbs) - 4
Circulating Oil Inlet Kits Item Number *** - 430155 DODGE - 5712 CO INLET ADAPTOR KIT
Weight of Circulating Oil Inlet Kit (lbs) - 2
Neoprene End Closure Item Number ** - 133996 DODGE - 9 SLV NEOPRENE END CLOSURE
Weight of Neoprene End Closure (lbs) - 1.5
Liner Assemblies XC Item Number - 132591 DODGE - 9 XC LINER ASSEMBLY
Weight of Liner Assemblies XC (lbs) - 300

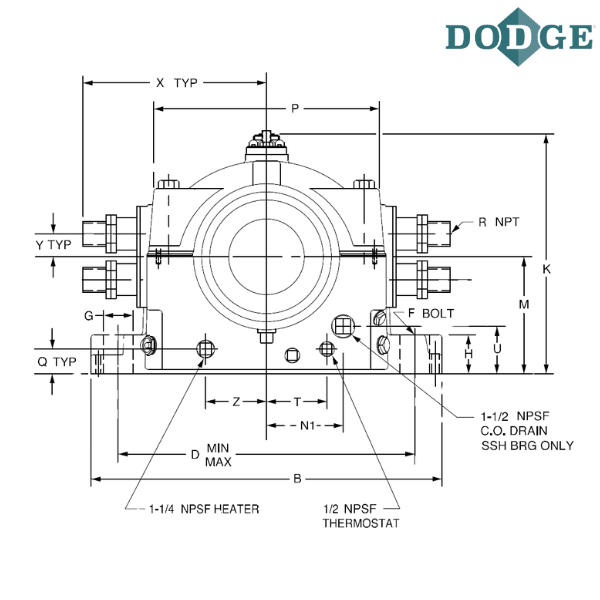

A (inch) - 29
Overall Length (B) inch - 37
C (inch) - 15.5
Bolt to Bolt Minimum Distance (D min) inch - 28.375
Bolt to Bolt Maximum Distance (D max) inch - 31.625
E (inch) - 8
F-Bolt Diameter (inch) - 1.75
G (inch) - 3.5
H (inch) - 6
J (inch) - 26.8125
Overall Height (K) inch - 25.5
Base to Center Height (M) inch - 12
N (inch) - 11.875
P (inch) - 21.75
Q (inch) - 2.5
S (inch) - 3.375
T (inch) - 6.375
U1 (inch) - 1.5
V (inch) - 5
V1 (Inch) - 1.5
W (inch) - 10.625
Z (inch) - 6.375
B1 (inch) - 13.625

Notes :
STL - Standard Series Loaded
XC - Externally Cooled

* 2 Collars Required To Make A Non-Expansion STL Pillow Block
** One required per pillow block end
*** One required per pillow block

**** Images are for representation purposes only
