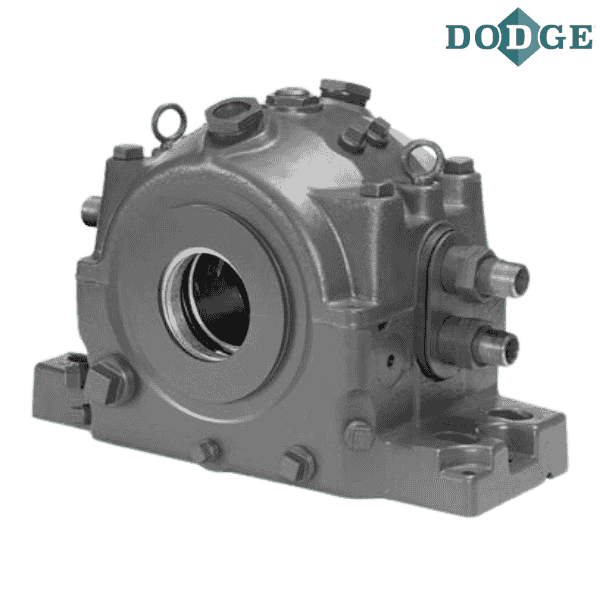

132477 DODGE - 4 15/16 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132477 DODGE - 4 15/16 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 4 15/16 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 4.9375
Weight of Expansion Pillow Block (lbs) - 425

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137104 DODGE - 4-15/16 RTL HI-CAP THR PLT KIT
Weight of Thrust Plate Kit (lbs) - 6.9
Split Thrust Collar Item Number * - 132154 DODGE - 4 15/16 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 8.7

Auxiliary Seal Kit Item Number ** - 432187 DODGE - 4-15/16 SLV AUX SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 7.5
Housing End Cap Kit Item Number - 432196 DODGE - 4 15/16 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 7.3
Heater / Thermostat Item Number *** - 434727 DODGE - 480 W 110 V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 3
Circulating Oil Inlet Kit Item Number **** - 132203 DODGE - 3757 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132423 DODGE - 4 15/16 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 113

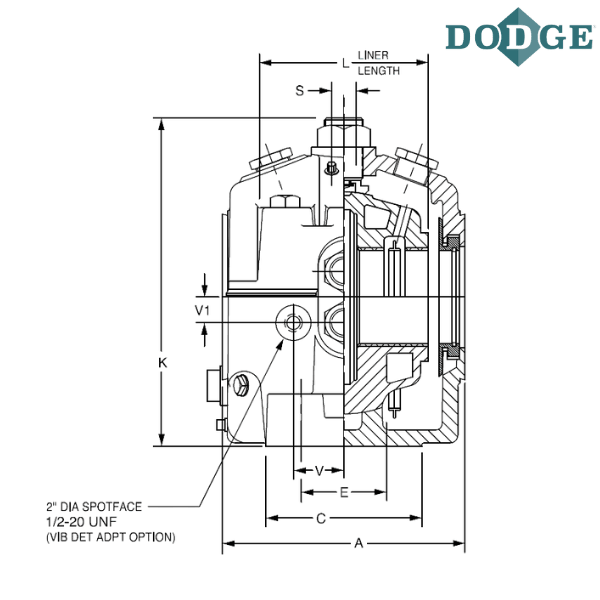

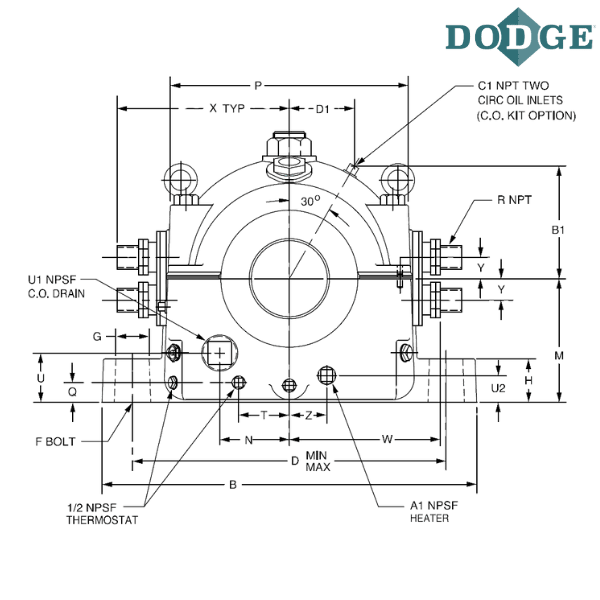

A (inch) - 12.75
Overall Length (B) inch - 24.25
C (inch) - 8.5
Bolt to Bolt Minimum Distance (D min) inch - 21.375
Bolt to Bolt Maximum Distance (D max) inch - 19.625
E (inch) - 4.5
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.75
Overall Height (K) inch - 17.375
L (inch) - 8.875
Base to Center Height (M) inch - 7.75
N (inch) - 5.125
P (inch) - 16
Q (inch) - 1.25
R (inch) - 1.25
S (inch) - 1.625
U (inch) - 3.25
U1 (inch) - 2
U2 (inch) - 1.5
V (inch) - 3.75
V1 (inch) - 1.75
W (inch) - 10.75 (±3/16)
X (inch) - 12.4375
Y (inch) - 1.875
Z (inch) - 5.375
A1 (inch) - 1.25
B1 (inch) - 8.5
C1 (inch) - 0.25
D1 (inch) - 4.9375

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

***** Images are for representation purposes only
