132476 DODGE - 3 15/16 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132476 DODGE - 3 15/16 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 3 15/16 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 4.4375
Weight of Expansion Pillow Block (lbs) - 300

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137103 DODGE - 4-7/16 RTL HI-CAP THST PLT KIT
Weight of Thrust Plate Kit (lbs) - 5.4
Split Thrust Collar Item Number * - 132153 DODGE - 4 7/16 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 5.6

Auxiliary Seal Kit Item Number ** - 432184 DODGE - 4-7/16 SLV AUX SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 7
Housing End Cap Kit Item Number - 432193 DODGE - 4 7/16 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 6.8
Heater / Thermostat Item Number *** - 434725 DODGE - 260 W 110 V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 2.5
Circulating Oil Inlet Kit Item Number **** - 132203 DODGE - 3757 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132422 DODGE - 4 7/16 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 82

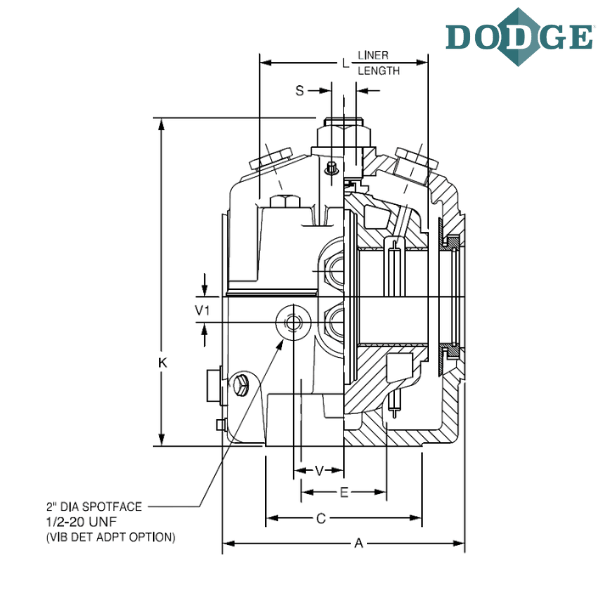

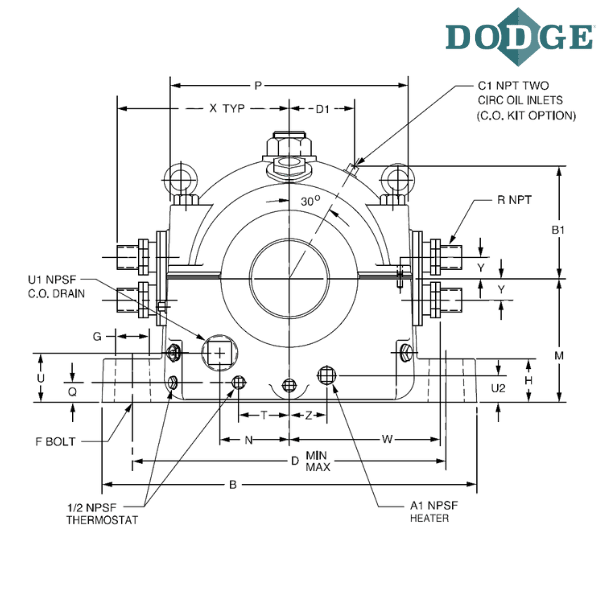

A (inch) - 11.75
Overall Length (B) inch - 21.75
C (inch) - 7.5
Bolt to Bolt Minimum Distance (D min) inch - 18.875
Bolt to Bolt Maximum Distance (D max) inch - 17.125
E (inch) - 4
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 2.5
Overall Height (K) inch - 15.25
L (inch) - 8
Base to Center Height (M) inch - 7
N (inch) - 4.5
P (inch) - 13.75
Q (inch) - 1.25
R (inch) - 1
S (inch) - 1.5
U (inch) - 2.9375
U1 (inch) - 1.5
U2 (inch) - 1.375
V (inch) - 3.25
V1 (inch) - 1.625
W (inch) - 9.125 (±3/16)
X (inch) - 10.25
Y (inch) - 1.25
Z (inch) - 4.4375
A1 (inch) - 1
B1 (inch) - 8.125
C1 (inch) - 0.25
D1 (inch) - 4.625

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

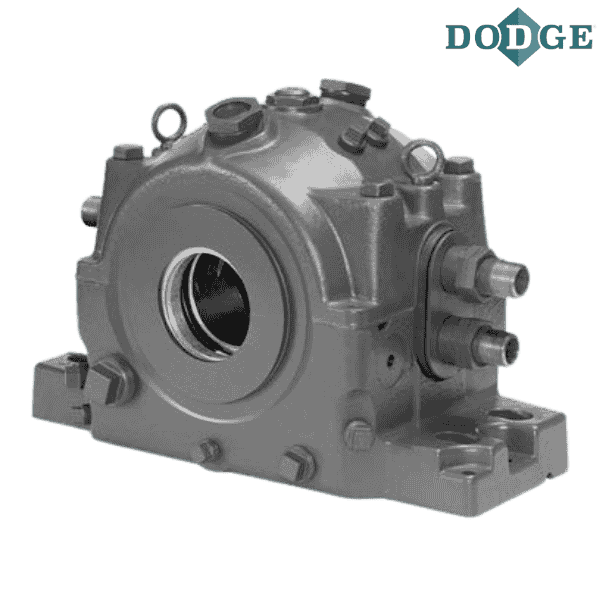

***** Images are for representation purposes only
