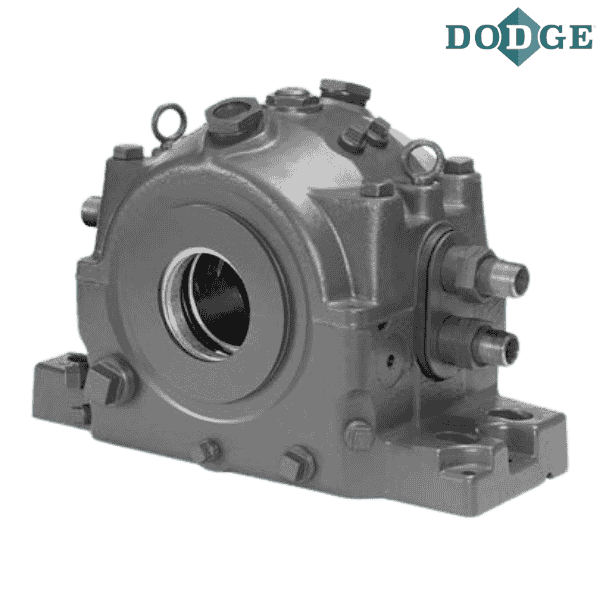

132389 DODGE - 12 SLV RTL EXPANSION PILLOW BLOCK

Brand - DODGE
Item Number - 132389 DODGE - 12 SLV RTL EXPANSION PILLOW BLOCK
Category - RTL Series Sleeveoil Pillow Block
Description - 12 SLV RTL EXPANSION PILLOW BLOCK
Shaft Size (inch) - 12
Weight of Expansion Pillow Block (lbs) - 3500

One of Each Required to Make a Non-Expansion Pillow Block - Thrust Plate Kits, Split Thrust Collar
Thrust Plate Kit Item Number - 137111 DODGE - 12 RTL HI-CAPACITY THRUST PLATE KIT
Weight of Thrust Plate Kit (lbs) - 74.1
Split Thrust Collar Item Number * - 132161 DODGE - 12 SLV RTL SPLIT THRUST COLLAR
Weight of Split Thrust Collar (lbs) - 96.4

Auxiliary Seal Kit Item Number ** - 132819 DODGE - 12 SLV AUX SEAL KIT
Weight of Auxiliary Seal Kit (lbs) - 40
Housing End Cap Kit Item Number - 132566 DODGE - 12 SLV HOUSING END CAP KIT
Weight of Housing End Cap Kit (lbs) - 25
Heater / Thermostat Item Number *** - 434735 DODGE - 1600 W 110 V Immersion Heater / T-Stat Combo
Weight of Heater / Thermostat (lbs) - 7.5
Circulating Oil Inlet Kit Item Number **** - 132205 DODGE - 614 RTL SLEEVOIL C.O. GRMT KIT
Weight of Circulating Oil Inlet (lbs) - 2
Replacement Liner Assemblies Item Number - 132430 DODGE - 12 SLV RTL LINER ASSEMBLY
Weight of Replacement Liner Assemblies (lbs) - 1405

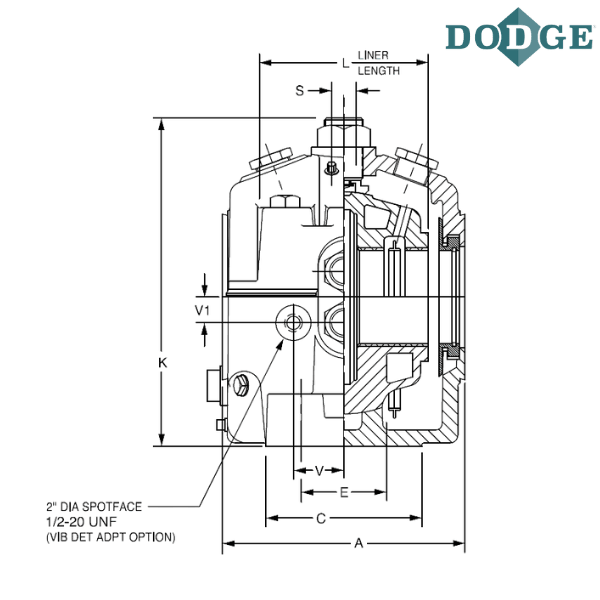

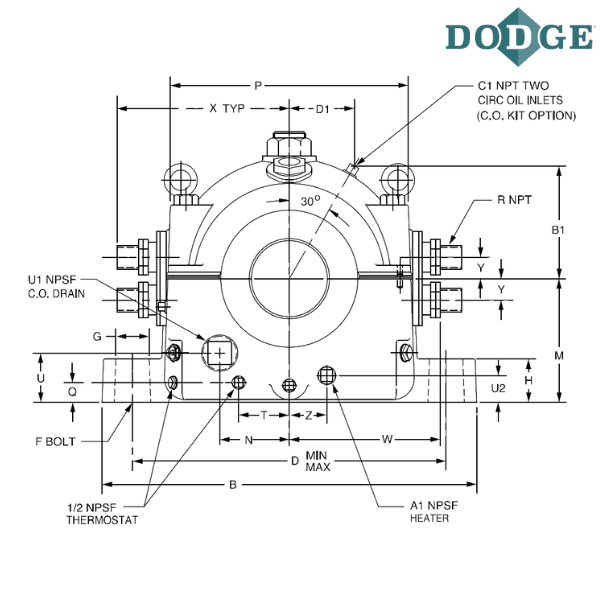

A (inch) - 29
Overall Length (B) inch - 49
C (inch) - 18
Bolt to Bolt Minimum Distance (D min) inch - 43.625
Bolt to Bolt Maximum Distance (D max) inch - 41.875
E (inch) - 10
F-Bolt Diameter (inch) - 2
G (inch) - 3
H (inch) - 6.5
Overall Height (K) inch - 37
L (inch) - 20.75
Base to Center Height (M) inch - 17.75
N (inch) - 12.4375
P (inch) - 35.5
Q (inch) - 3.125
R (inch) - 3
S (inch) - 3.25
T (inch) - 9
U (inch) - 6.125
U1 (inch) - 2.5
U2 (inch) - 3.125
V (inch) - 6.5
V1 (inch) - 2
W (inch) - 22.0 (±3/16)
X (inch) - 24.25
Y (inch) - 3.5
Z (inch) - 12.125
A1 (inch) - 1.25
B1 (inch) - 19.5
C1 (inch) - 0.375
D1 (inch) - 9.5625

Notes :
RTL - Radial Thrust Loaded

* For recessed shaft
** One required per pillow block end
*** 220 volt heaters available
**** One required per pillow block

***** Images are for representation purposes only
