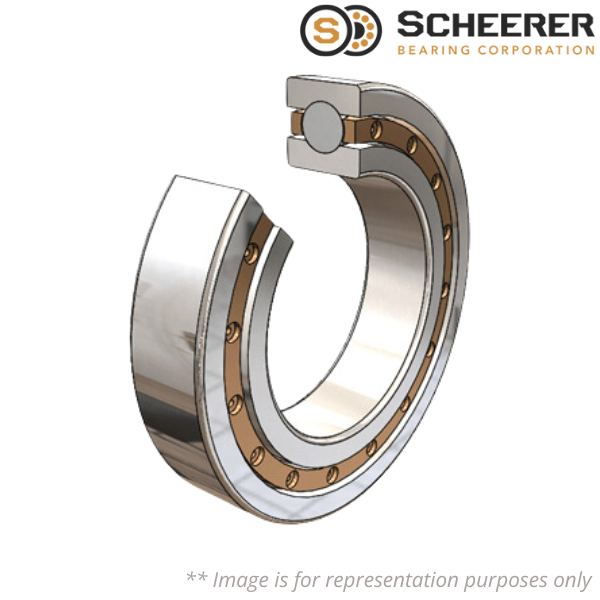

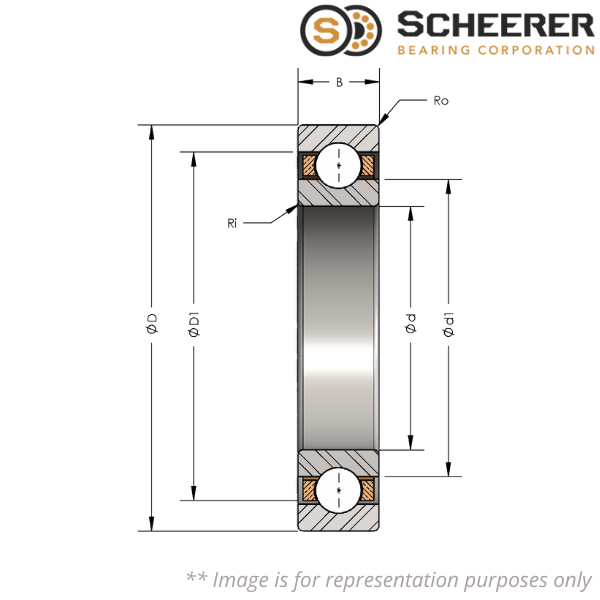

13213-4P SCHEERER

Brand - SCHEERER
Part Number - 13213-4P SCHEERER
Category - Four Point Angular Contact Ball Bearing, Metric Series
Configuration - Conrad Style Radial

Principal Dimensions & Specifications (Metric):
Inner Diameter (d) - 110 mm
Outer Diameter (D) - 140 mm
Width (b) - 16 mm
Weight (M) - 3.63 kg
Dynamic Capacity (C) - Available on Request
Static Capacity (Co) - Available on Request

Principal Dimensions & Specifications (Imperial):
Inner Diameter (d) - 4.331 inch
Outer Diameter (D) - 5.512 inch
Width (b) - 0.63 inch
Weight (M) - 8 lbs
Dynamic Capacity (C) - Available on Request
Static Capacity (Co) - Available on Request

♦ ♦ Images are for representation purposes only
