131988 DODGE - P2B-SXVB-102


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131988 DODGE - P2B-SXVB-102
Category - Eccentric SXV Collar Ball Bearings (SXVB Intermediate Duty Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.125
Description - P2B-SXVB-102
Weight (lbs) - 2.7

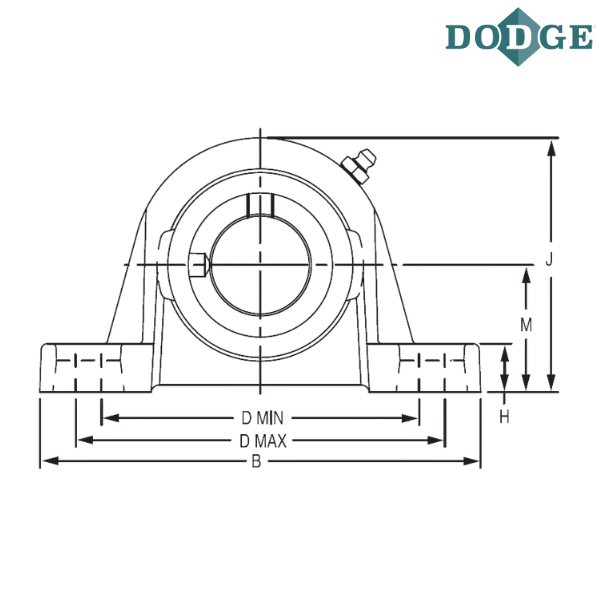

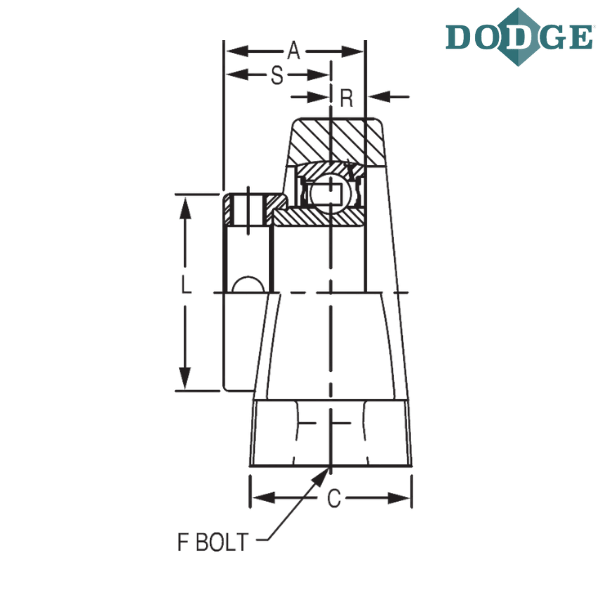

Length Through Bore (A) inch - 1.41
Overall Length (B) inch - 6.25
Width (C) inch - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 4.25
Bolt to Bolt Maximum Distance (D max) inch - 5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.94
H (inch) - 0.62
Overall Height (J) inch - 3.19
L (inch) - 1.75
Base to Center Height (M) inch - 1.56
R (inch) - 0.35

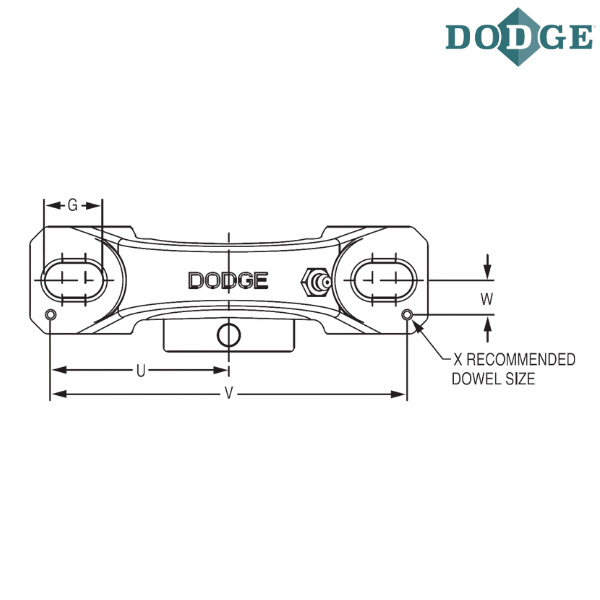

S (inch) - 1.05
U (inch) - 2.88
V (inch) - 5.76
W (inch) - 0.56
X (inch) - 2.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
B - Low backing height pillow block

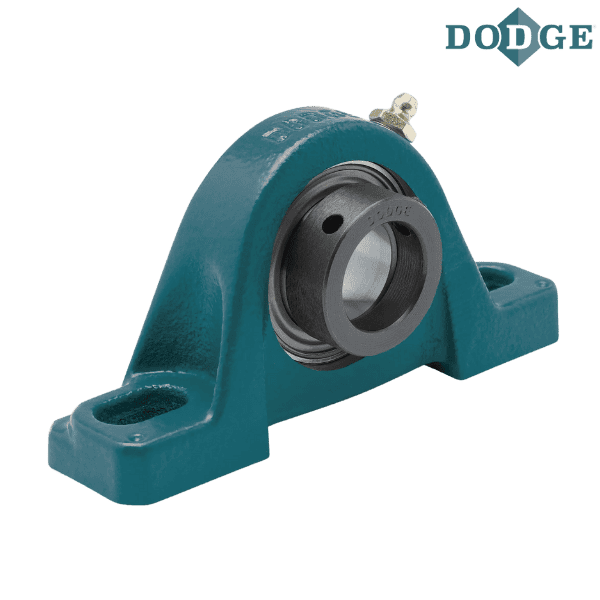

** Images are for representation purposes only
