Description
Brand - DODGE
Item Number - 131983 DODGE - P2B-SXVB-012
Category - Eccentric SXV Collar Ball Bearings (SXVB Intermediate Duty Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - P2B-SXVB-012
Weight (lbs) - 1.3

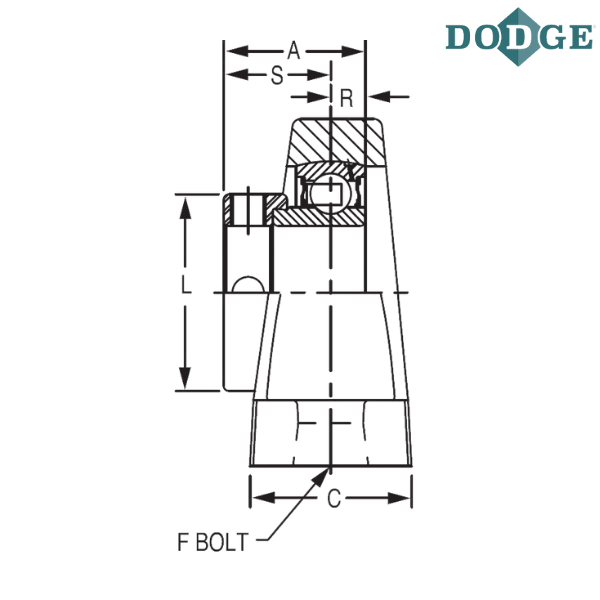

Length Through Bore (A) inch - 1.22

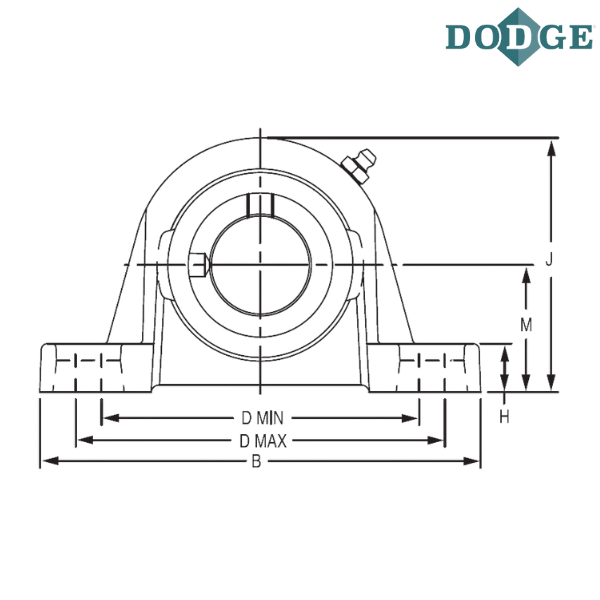

Overall Length (B) inch - 5.25
Width (C) inch - 1.34
Bolt to Bolt Minimum Distance (D min) inch - 3.38
Bolt to Bolt Maximum Distance (D max) inch - 4.19
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.85
H (inch) - 0.47
Overall Height (J) inch - 2.49
L (inch) - 1.31
Base to Center Height (M) inch - 1.25
R (inch) - 0.3
S (inch) - 0.92

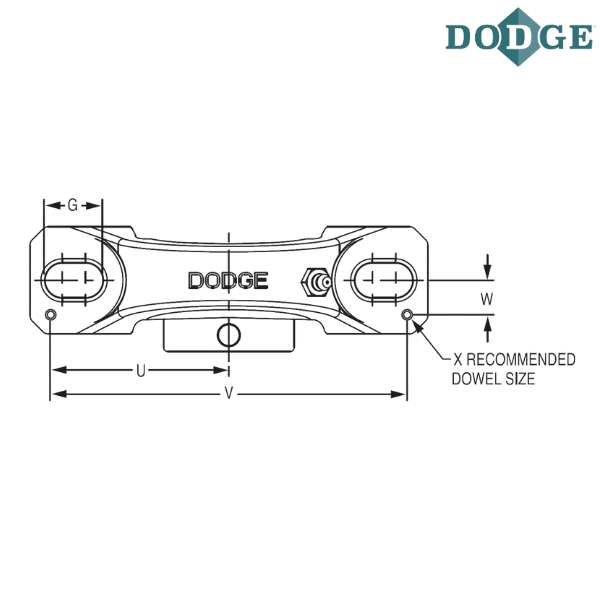

U (inch) - 2.25
V (inch) - 4.5
W (inch) - 0.5
X (inch) - 1.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
B - Low backing height pillow block

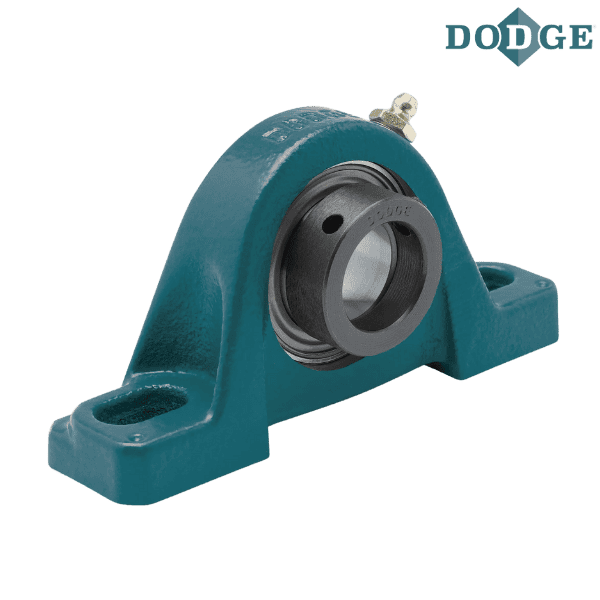

** Images are for representation purposes only
