131928 DODGE - INS-SXR-204


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131928 DODGE - INS-SXR-204
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Bearing Inserts)
Series - 212
Shaft Size (inch) - 2.25
Description - INS-SXR-204
Weight (lbs) - 3.8

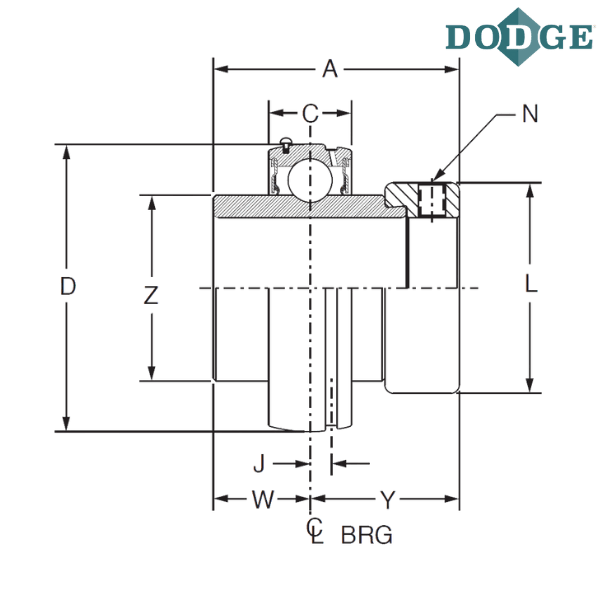

Overall Width (A) inch - 2.74
C (inch) - 1.02
Overall Length (D) inch - 4.3307
J (inch) - 0.25
L (inch) - 3.31
N (inch) - 7/16-20
W (inch) - 0.9
Y (inch) - 1.84
Z (inch) - 2.97
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar

** Images are for representation purposes only
