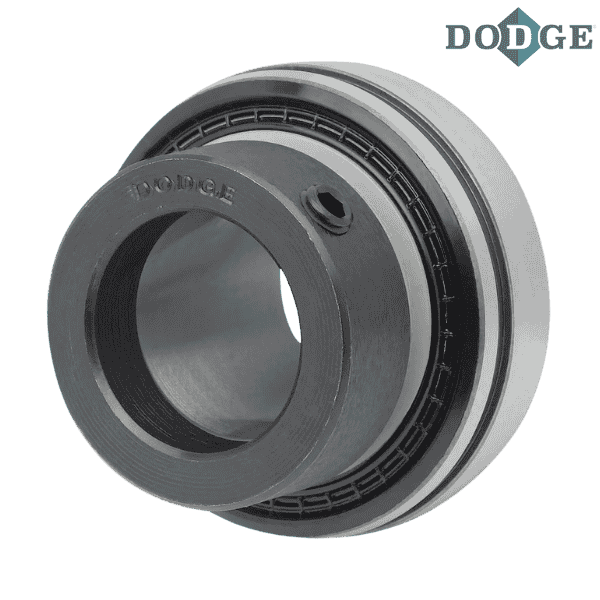

131923 DODGE - INS-SXR-115


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131923 DODGE - INS-SXR-115
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Bearing Inserts)
Series - 210
Shaft Size (inch) - 1.9375
Description - INS-SXR-115
Weight (lbs) - 2.2

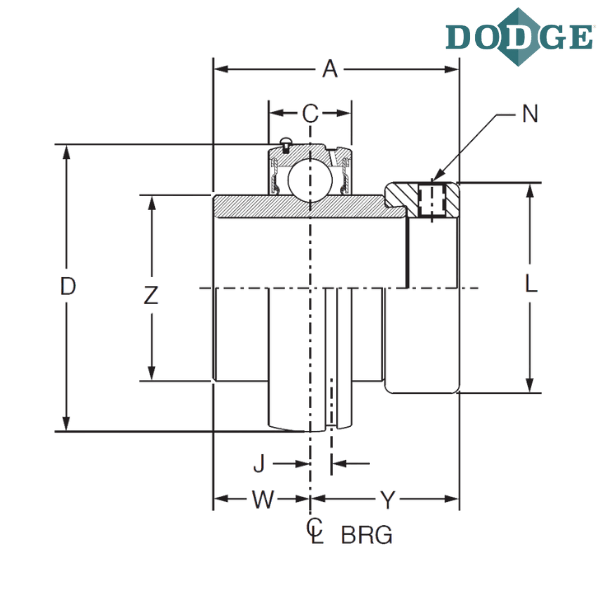

Overall Width (A) inch - 2.25
C (inch) - 0.87
Overall Length (D) inch - 3.5433
J (inch) - 0.25
L (inch) - 2.75
N (inch) - 3/8-24
W (inch) - 0.75
Y (inch) - 1.5
Z (inch) - 2.43
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar
