131919 DODGE - INS-SXR-111


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131919 DODGE - INS-SXR-111
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Bearing Inserts)
Series - 209
Shaft Size (inch) - 1.6875
Description - INS-SXR-111
Weight (lbs) - 1.9

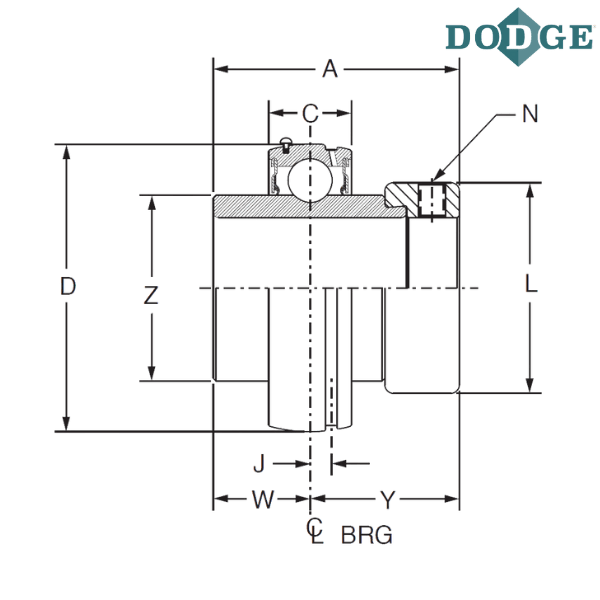

Overall Width (A) inch - 2.13
C (inch) - 0.87
Overall Length (D) inch - 3.3465
J (inch) - 0.25
L (inch) - 2.5
N (inch) - 5/16-24
W (inch) - 0.75
Y (inch) - 1.38
Z (inch) - 2.22
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar

** Images are for representation purposes only
