131916 DODGE - INS-SXR-108


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131916 DODGE - INS-SXR-108
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Bearing Inserts)
Series - 208
Shaft Size (inch) - 1.5
Description - INS-SXR-108
Weight (lbs) - 1.7

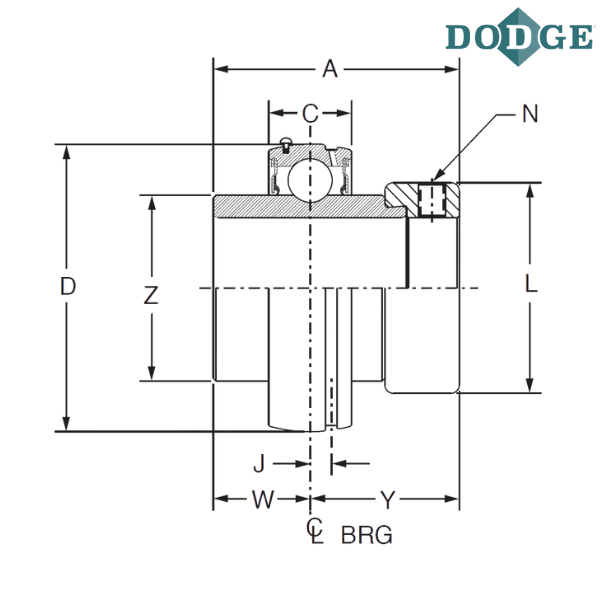

Overall Width (A) inch - 2.12
C (inch) - 0.87
Overall Length (D) inch - 3.1496
J (inch) - 0.22
L (inch) - 2.38
N (inch) - 5/16-24
W (inch) - 0.75
Y (inch) - 1.37
Z (inch) - 2.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar

** Images are for representation purposes only
