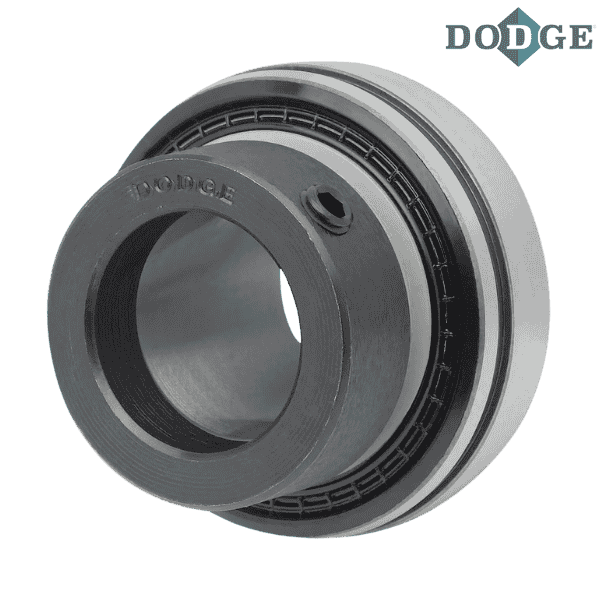

131906 DODGE - INS-SXR-014


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131906 DODGE - INS-SXR-014
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Bearing Inserts)
Series - 205
Shaft Size (inch) - 0.875
Description - INS-SXR-014
Weight (lbs) - 0.6

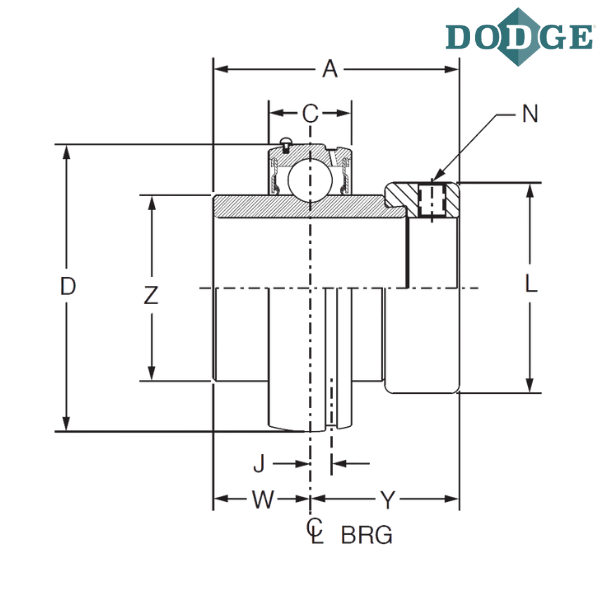

Overall Width (A) inch - 1.62
C (inch) - 0.59
Overall Length (D) inch - 2.0472
J (inch) - 0.16
L (inch) - 1.5
N (inch) - 1/4-28
W (inch) - 0.56
Y (inch) - 1.06
Z (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SXR - Wide inner ring, normal duty, Eccentric locking Collar
