Description
Brand - DODGE
Item Number - 131749 DODGE - F2B-SXV-108
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F2B-SXV-108
Part Number (No-Lube/Sealed for Life) - 068784
Description (No-Lube/Sealed for Life) - F2B-SXV-108-NL
Weight (lbs) - 4.7

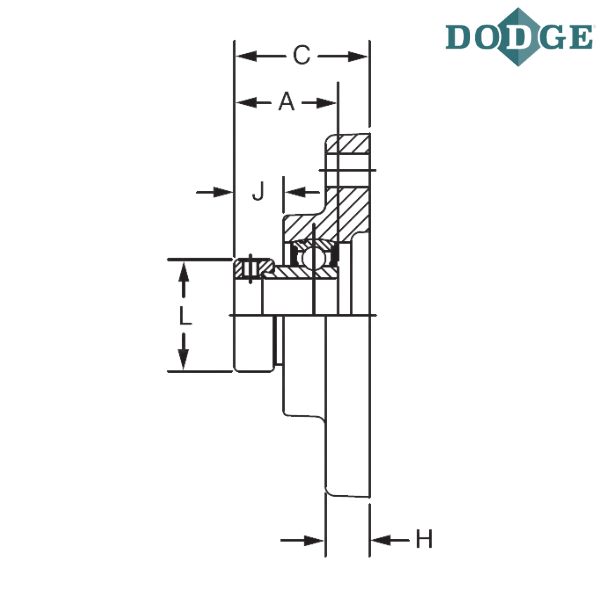

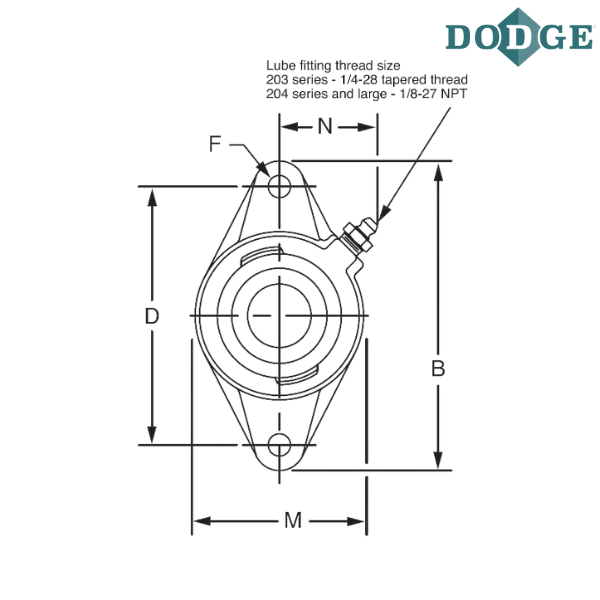

Length Through Bore (A) inch - 1.72
Overall Length (B) inch - 6.75
Thickness (C) inch - 2.07
Bolt Center to Center Length (D) inch - 5.66
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.73
L (inch) - 2.38
Overall Width (M) inch - 4.13
N (inch) - 1.83
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

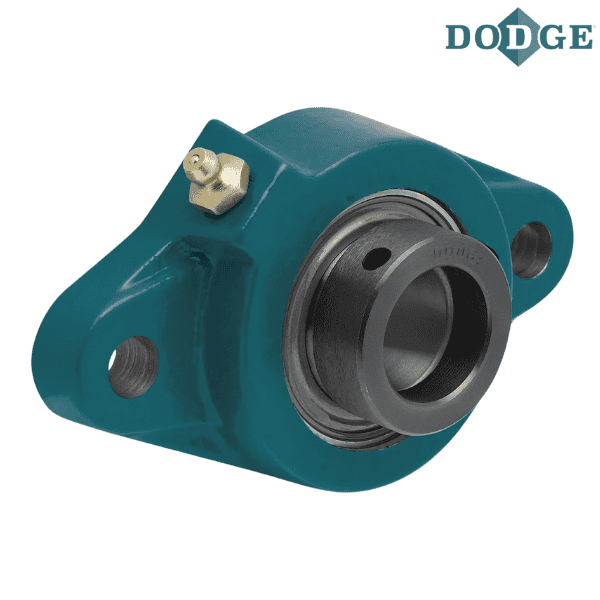

** Images are for representation purposes only
