Description
Brand - DODGE
Item Number - 131743 DODGE - F2B-SXV-103
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.1875
Description - F2B-SXV-103
Description (No-Lube/Sealed for Life) - F2B-SXV-103-NL
Weight (lbs) - 2.2

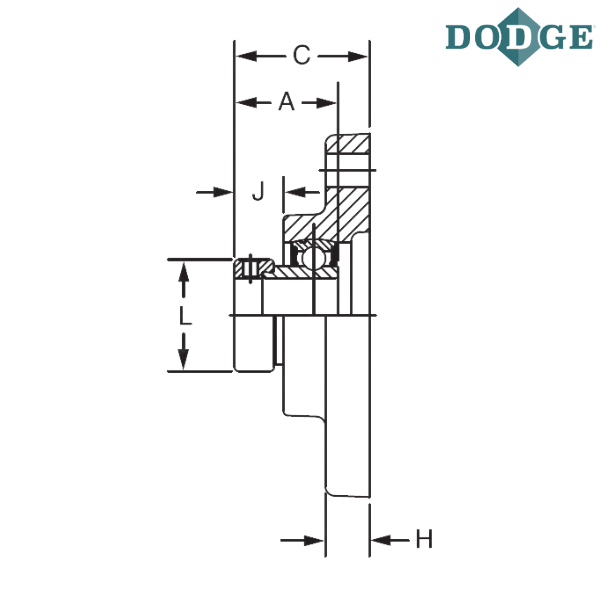

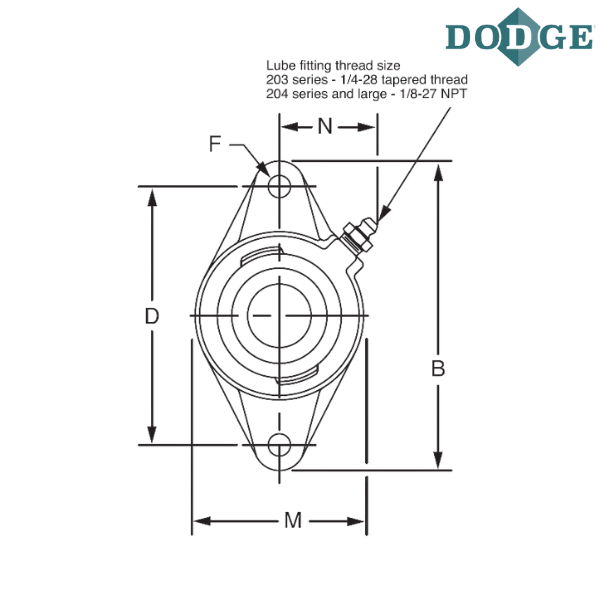

Length Through Bore (A) inch - 1.41
Overall Length (B) inch - 5.56
Thickness (C) inch - 1.67
Bolt Center to Center Length (D) inch - 4.59
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
J (inch) - 0.61
L (inch) - 1.75
Overall Width (M) inch - 3.13
N (inch) - 1.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

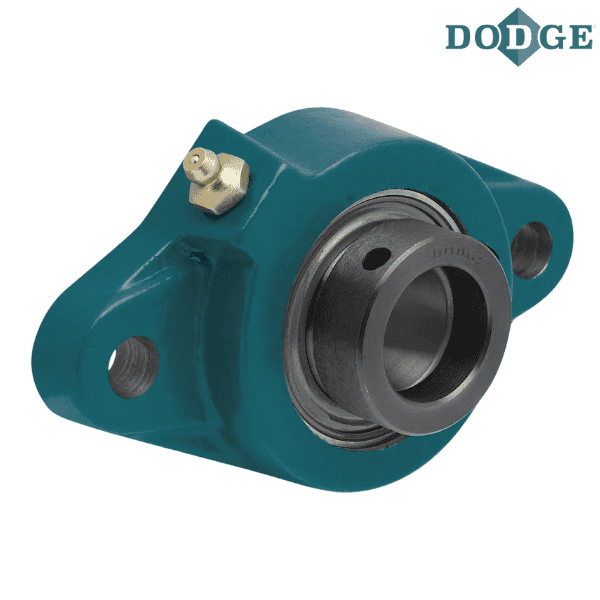

** Images are for representation purposes only
