Description
Brand - DODGE
Item Number - 131737 DODGE - F2B-SXV-012
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - F2B-SXV-012
Description (No-Lube/Sealed for Life) - F2B-SXV-012-NL
Weight (lbs) - 1

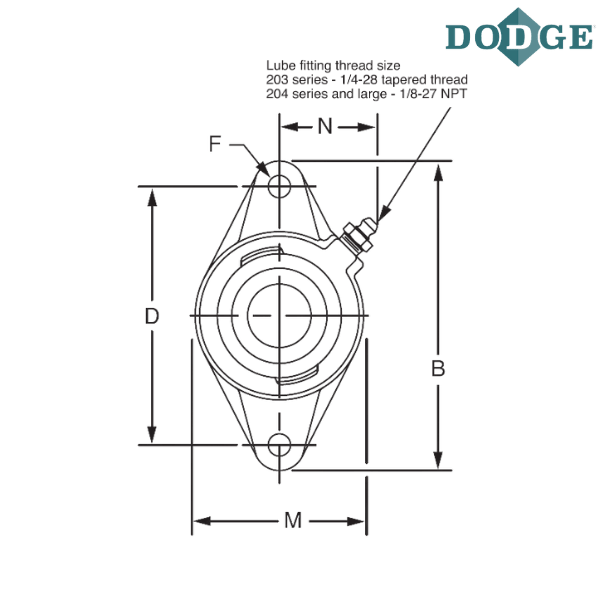

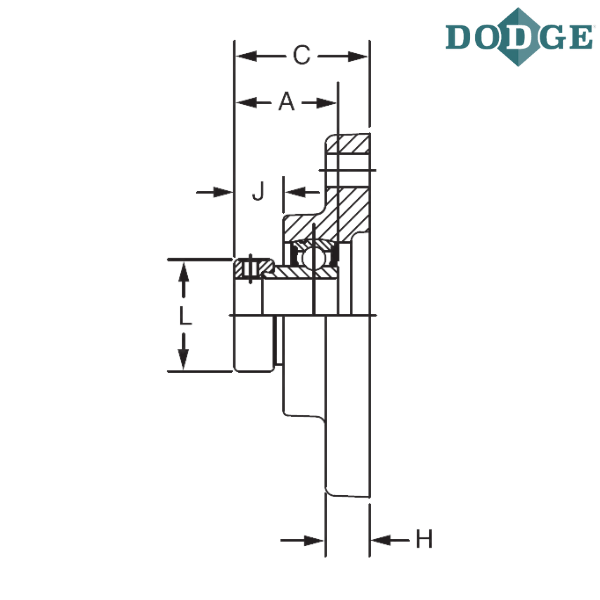

Length Through Bore (A) inch - 1.22
Overall Length (B) inch - 4.41
Thickness (C) inch - 1.54
Bolt Center to Center Length (D) inch - 3.53
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.5
J (inch) - 0.55
L (inch) - 1.31
Overall Width (M) inch - 2.38
N (inch) - 1.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

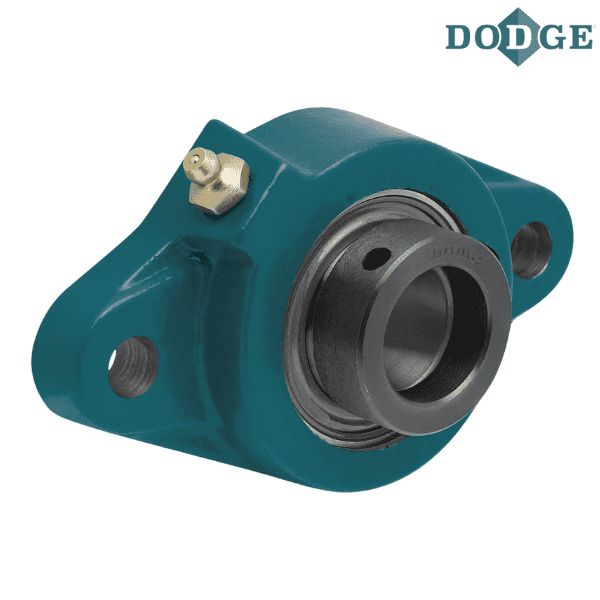

** Images are for representation purposes only
