Description
Brand - NILOS
Item Number - 1317 AV NILOS
Category - NILOS-RING for Double Row Self-Aligning Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 85 mm
Outer Diameter (a) - 164 mm
Dimension (C) - 135 mm
Widtth (h) - 4 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (13 Series) :
Bearing Part Number - 1317
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 85 mm
Outer Diameter (D) - 180 mm
Width (B) - 41 mm

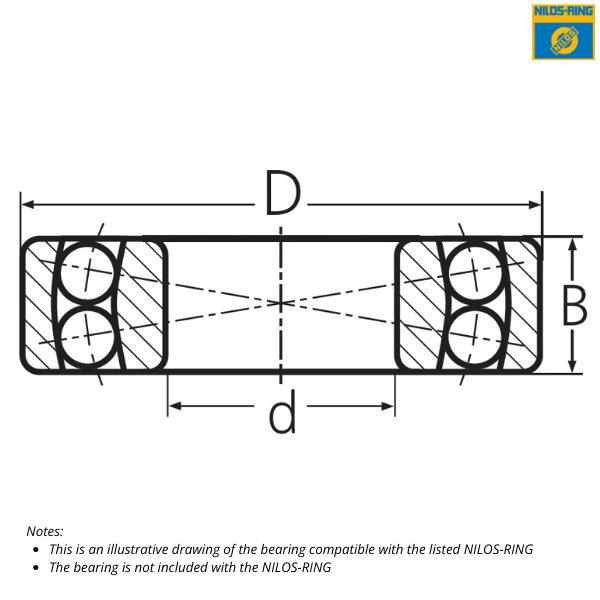

♦♦ Images are for representation purposes only
