131447 DODGE - INS-SXV-108


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131447 DODGE - INS-SXV-108
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Bearing Inserts)
Series - 208
Shaft Size (inch) - 1.5
Description - INS-SXV-108
Weight (lbs) - 1.8

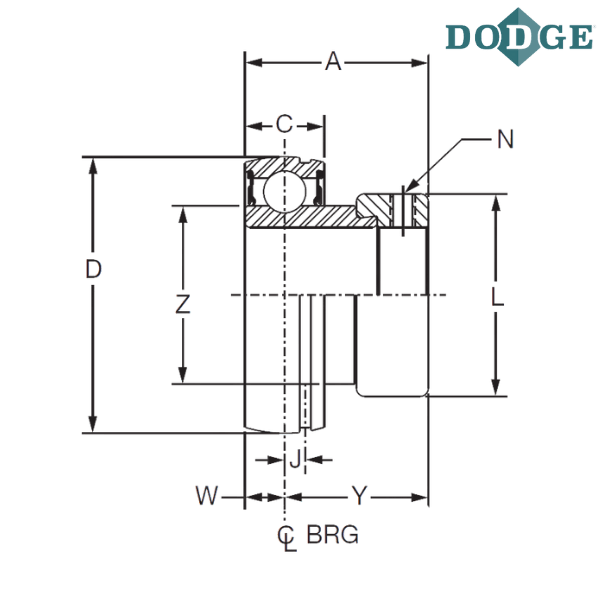

Overall Width (A) inch - 1.72
C (inch) - 0.87
Overall Length (D) inch - 3.1496
J (inch) - 0.22
L (inch) - 2.38
N (inch) - 5/16-24
W (inch) - 0.43
Y (inch) - 1.28
Z (inch) - 2.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

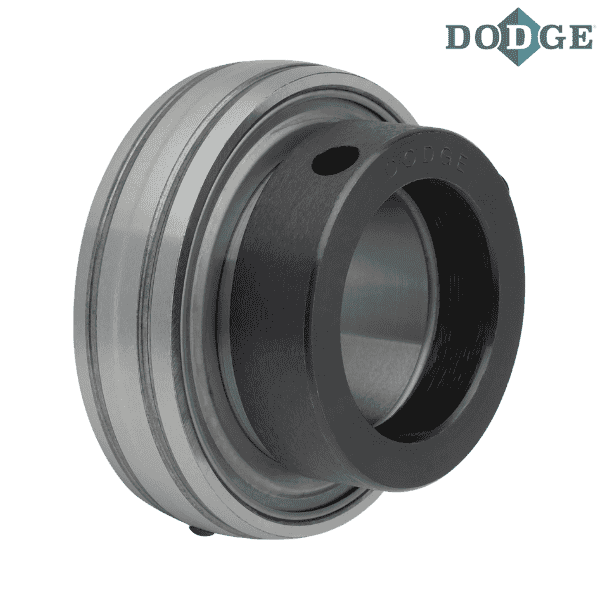

** Images are for representation purposes only
