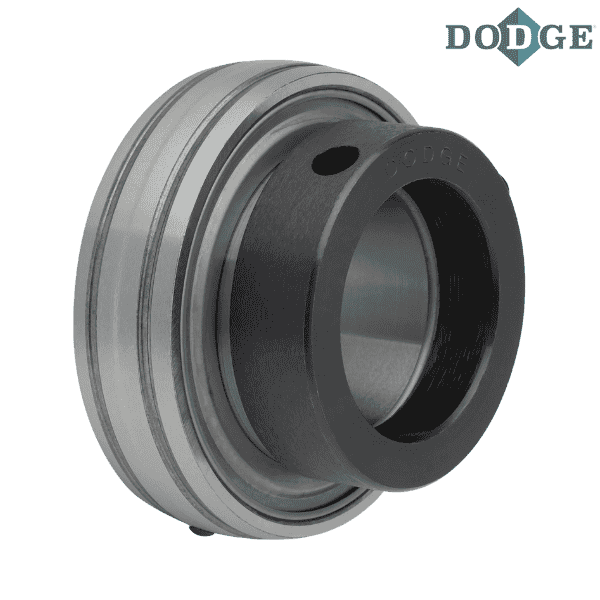

131442 DODGE - INS-SXV-104S


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131442 DODGE - INS-SXV-104S
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Bearing Inserts)
Series - 206
Shaft Size (inch) - 1.25
Description - INS-SXV-104S
Weight (lbs) - 0.7

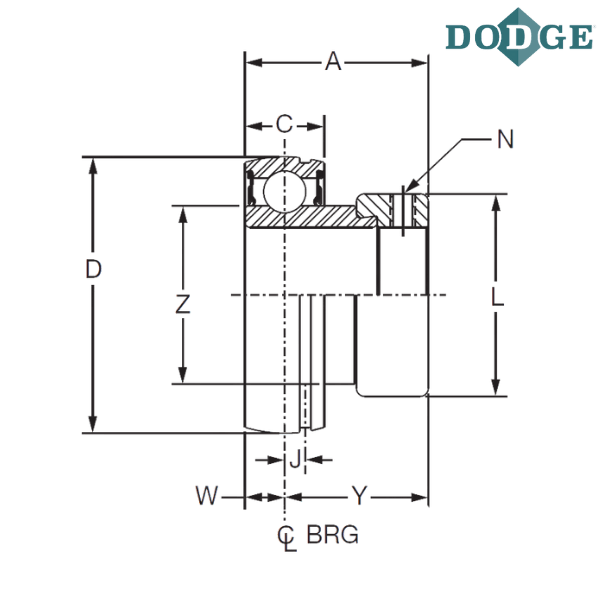

Overall Width (A) inch - 1.41
C (inch) - 0.69
Overall Length (D) inch - 2.4409
J (inch) - 0.16
L (inch) - 1.75
N (inch) - 5/16-24
W (inch) - 0.35
Y (inch) - 1.05
Z (inch) - 1.57
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
S - Next smaller ring size

** Images are for representation purposes only
