131437 DODGE - INS-SXV-015


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131437 DODGE - INS-SXV-015
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Bearing Inserts)
Series - 205
Shaft Size (inch) - 0.9375
Description - INS-SXV-015
Weight (lbs) - 0.4

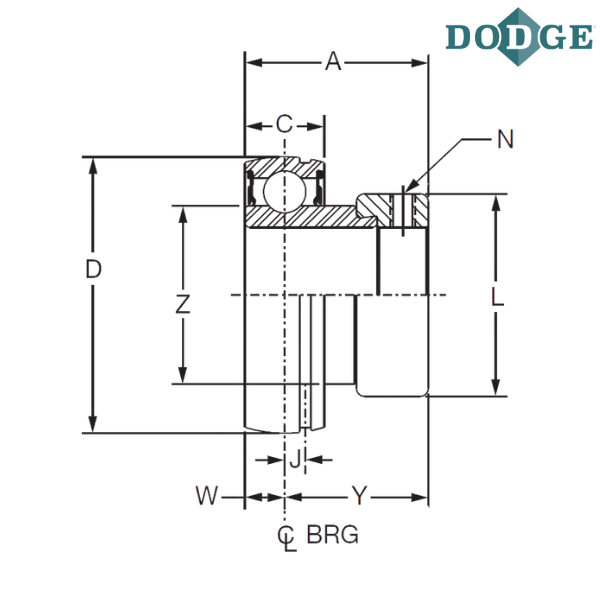

Overall Width (A) inch - 1.22
C (inch) - 0.59
Overall Length (D) inch - 2.0472
J (inch) - 0.16
L (inch) - 1.5
N (inch) - 1/4-28
W (inch) - 0.3
Y (inch) - 0.92
Z (inch) - 1.32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
INS - Insert
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

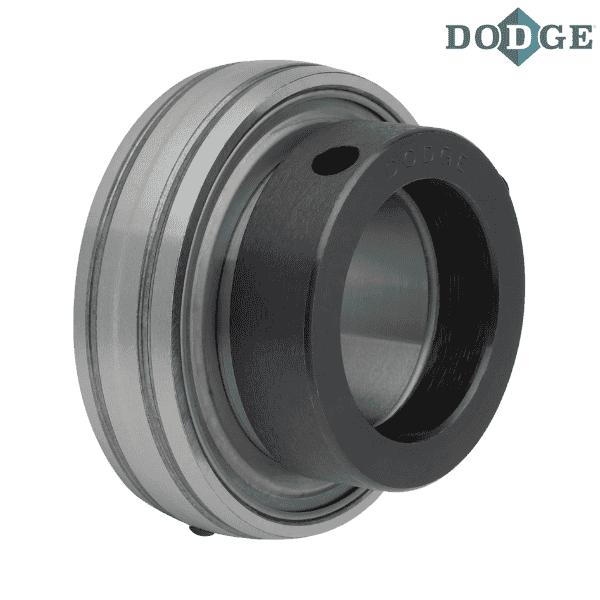

** Images are for representation purposes only
