131389 DODGE - F4B-SXV-108


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131389 DODGE - F4B-SXV-108
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 4-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F4B-SXV-108
Weight (lbs) - 5

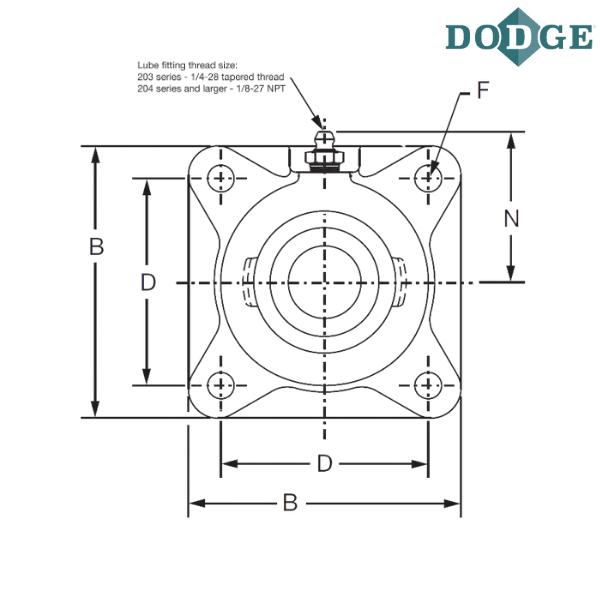

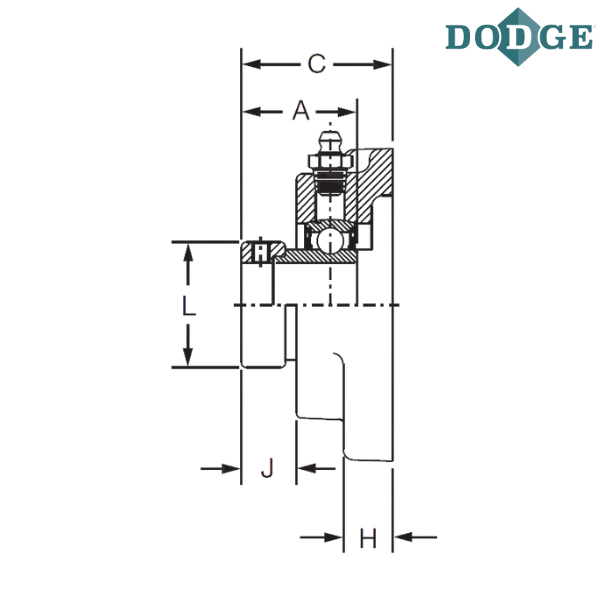

Length Through Bore (A) inch - 1.72
Overall Length (B) inch - 5.13
Thickness (C) inch - 2.07
Bolt Center to Center Length (D) inch - 4
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.73
L (inch) - 2.38
N (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

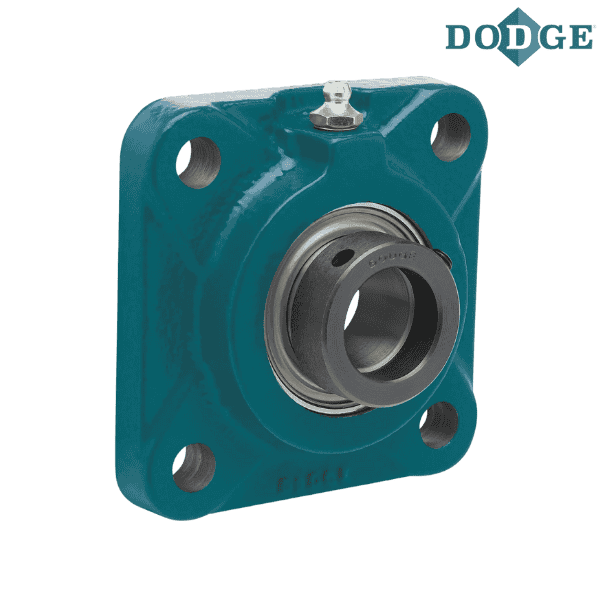

** Images are for representation purposes only
