Description
Brand - DODGE
Item Number - 131384 DODGE - F4B-SXV-104S
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty 4-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.25
Description - F4B-SXV-104S
Weight (lbs) - 3

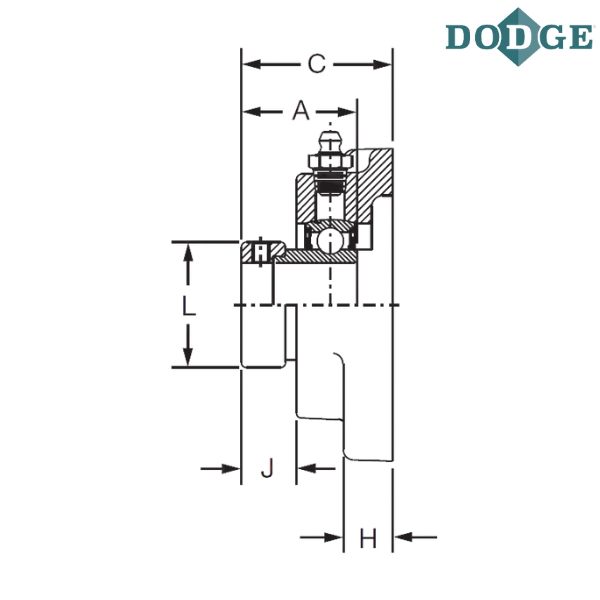

Length Through Bore (A) inch - 1.41

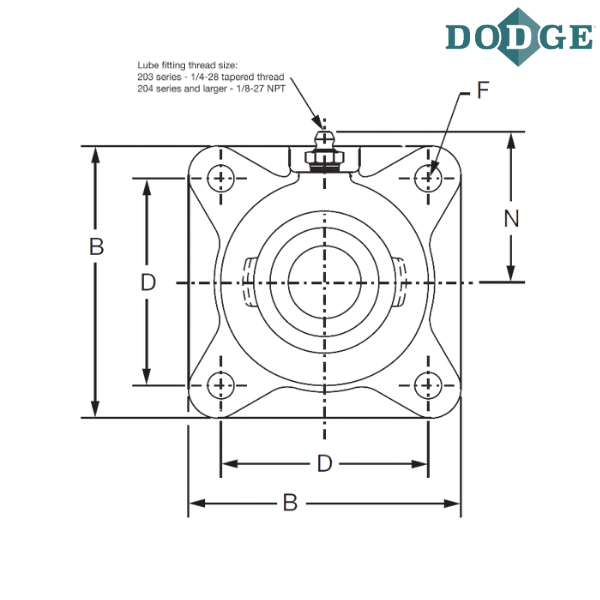

Overall Length (B) inch - 4.25
Thickness (C) inch - 1.67
Bolt Center to Center Length (D) inch - 3.25
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
J (inch) - 0.61
L (inch) - 1.75
N (inch) - 2.19
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXV - Narrow inner ring, intermediate duty, eccentric locking collar
S - Next smaller ring size

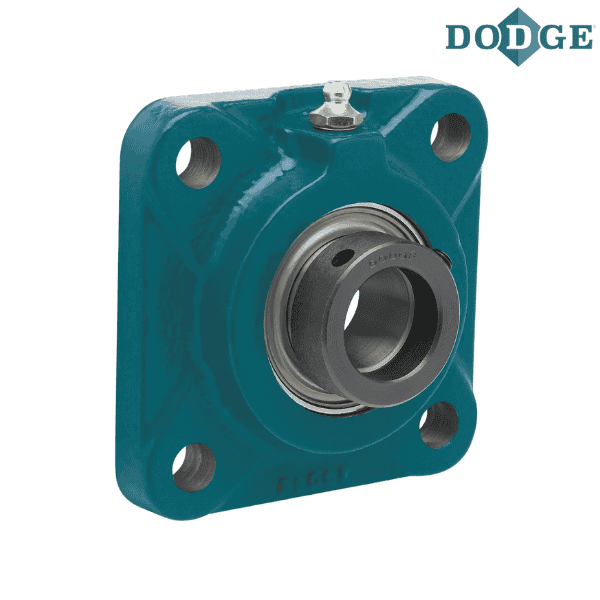

** Images are for representation purposes only
