131343 DODGE - F4B-SXR-200L


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131343 DODGE - F4B-SXR-200L
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 211
Shaft Size (inch) - 2
Description - F4B-SXR-200L
Description (With Flingers) - F4B-SXR-200L-FF
Weight (lbs) - 10.2

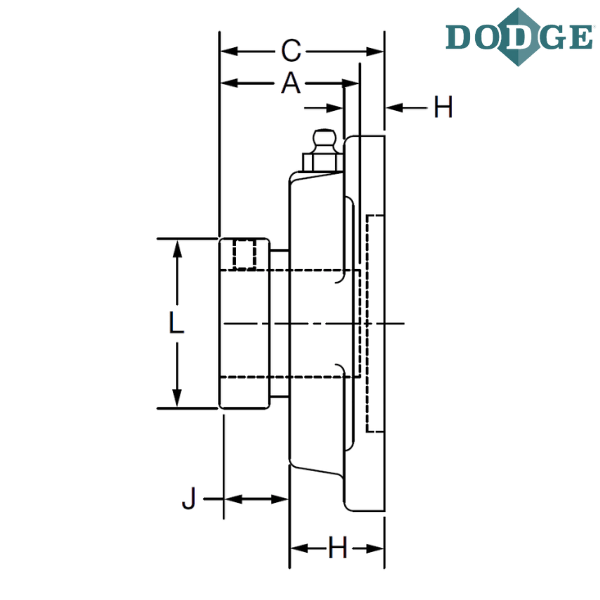

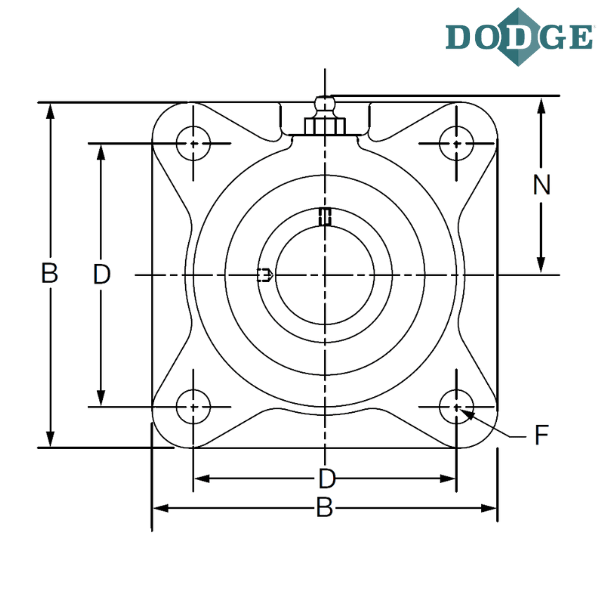

Length Through Bore (A) inch - 2.59
Overall Length (B) inch - 6.5
Thickness (C) inch - 2.65
Bolt Center to Center Length (D) inch - 5.13
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.69
J (inch) - 1.05
L (inch) - 3
N (inch) - 3.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
L - Next larger ring size

** Images are for representation purposes only
