Description
Brand - DODGE

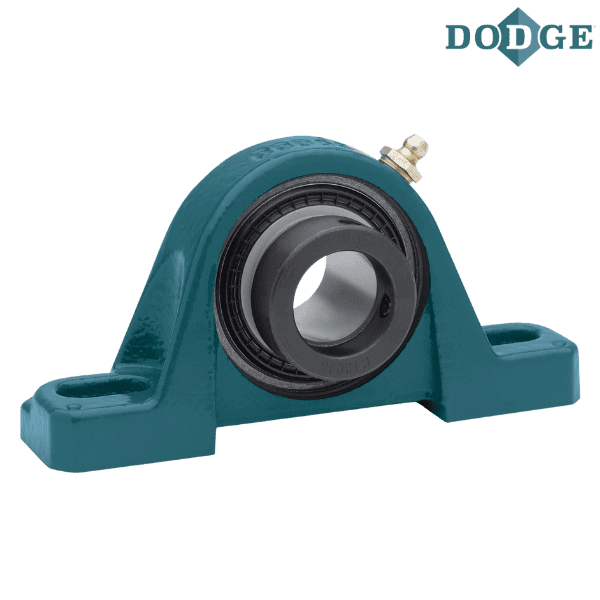

Item Number - 131339 DODGE - P2B-SXR-200L
Category - Eccentric Collar Ball Bearings (SXR and SXRU Normal Duty Pillow Blocks)
Series - 211
Shaft Size (inch) - 2
Description - P2B-SXR-200L
Description (Sealed for Life) - P2B-SXR-200L-NL
Weight (lbs) - 9.8

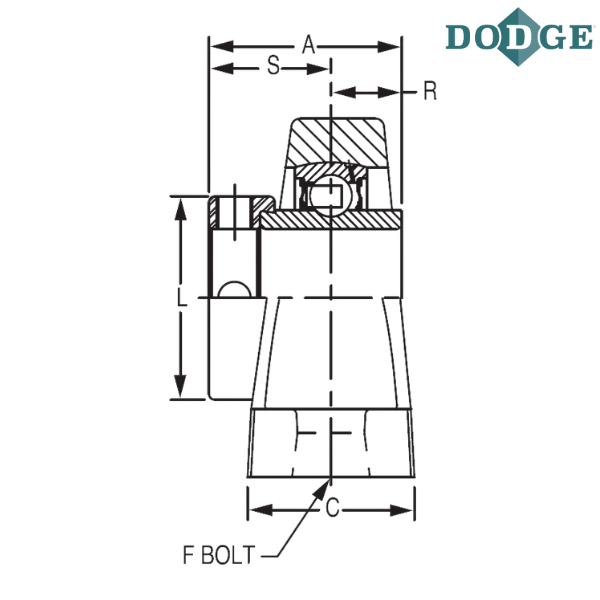

Length Through Bore (A) inch - 2.59

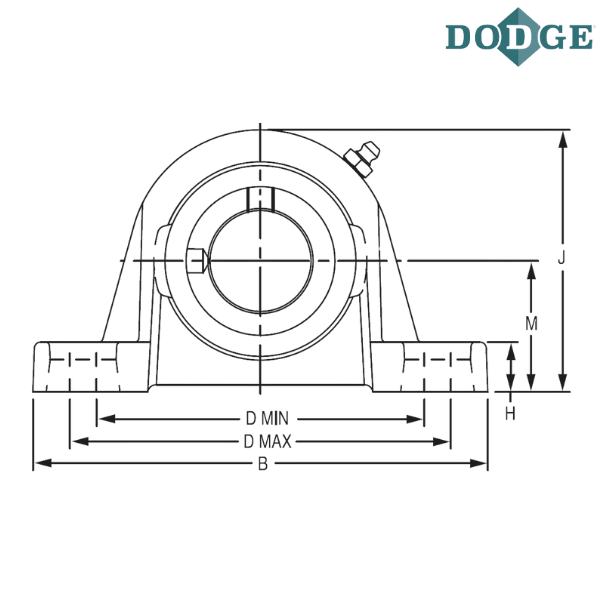

Overall Length (B) inch - 8.88
Width (C) inch - 2.3
Bolt to Bolt Minimum Distance (D min) inch - 6.38
Bolt to Bolt Maximum Distance (D max) inch - 7.44
F-Bolt Diameter (inch) - 0.625

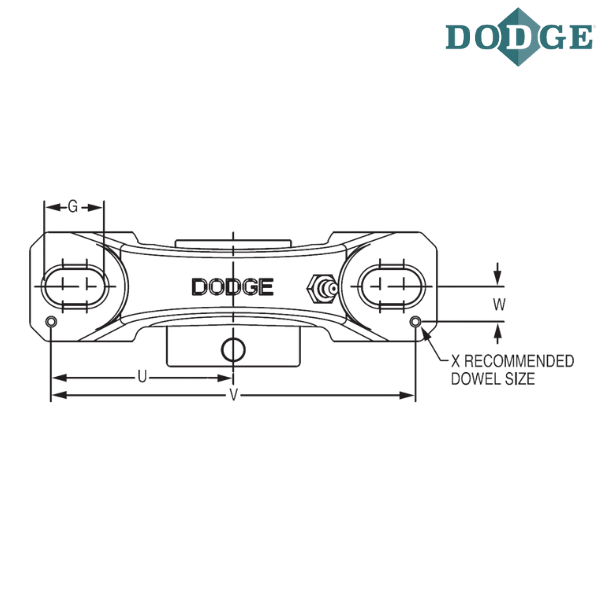

G (inch) - 1.21
H (inch) - 0.88
Overall Height (J) inch - 4.96
L (inch) - 3
M (inch) - 2.5
R (inch) - 0.88
S (inch) - 1.71
U (inch) - 3.94
V (inch) - 7.88
W (inch) - 0.81
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2 bolt base pillow block
SXR - Wide inner ring, normal duty, Eccentric locking Collar
L - Next larger ring size
** Images are for representation purposes only
