131325 DODGE - SCHB-SXR-115


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131325 DODGE - SCHB-SXR-115
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Screw Conveyor Hanger Bearings)
Series - 210
Shaft Size (inch) - 1.9375
Description - SCHB-SXR-115
Weight (lbs) - 5.5

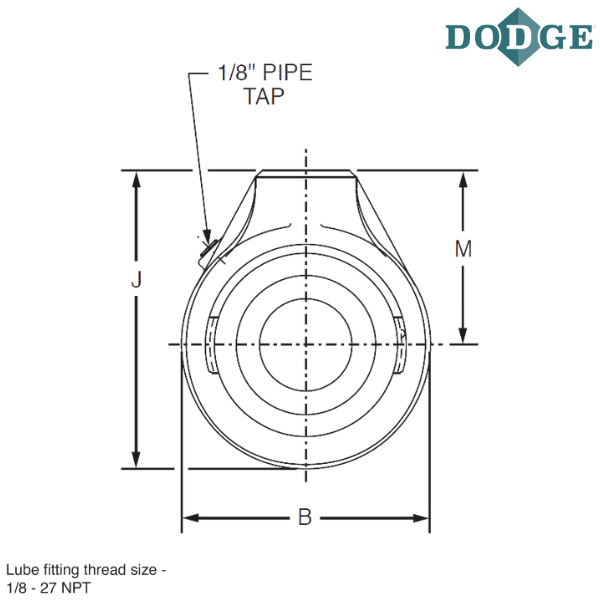

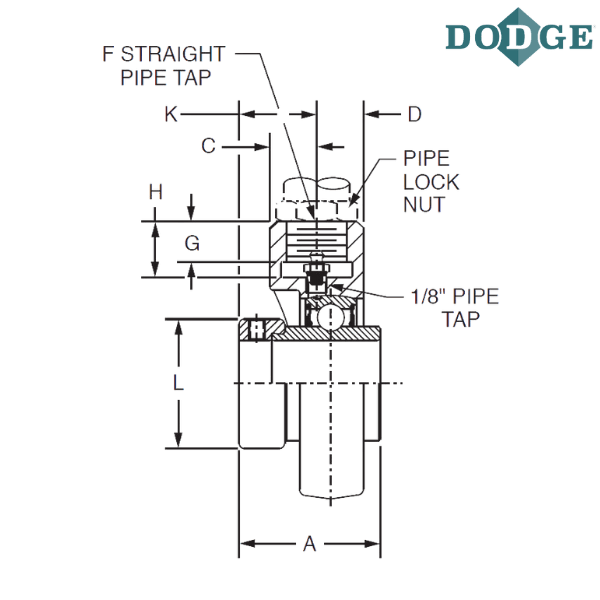

Length Through Bore (A) inch - 2.25
B (inch) - 4.63
C (inch) - 0.94
D (inch) - 1.78
F* (NPSM) inch - 1-11.5
G (inch) - 0.81
H (inch) - 1.13
Overall Length (J) inch - 5.56
K (inch) - 1.22
L (inch) - 2.75
M (inch) - 3.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
SCHB - Screw conveyor hanger bearing
SXR - Wide inner ring, normal duty, Eccentric locking Collar

* Use straight thread for the pipe. Bearing can be secured with a heavy locknut

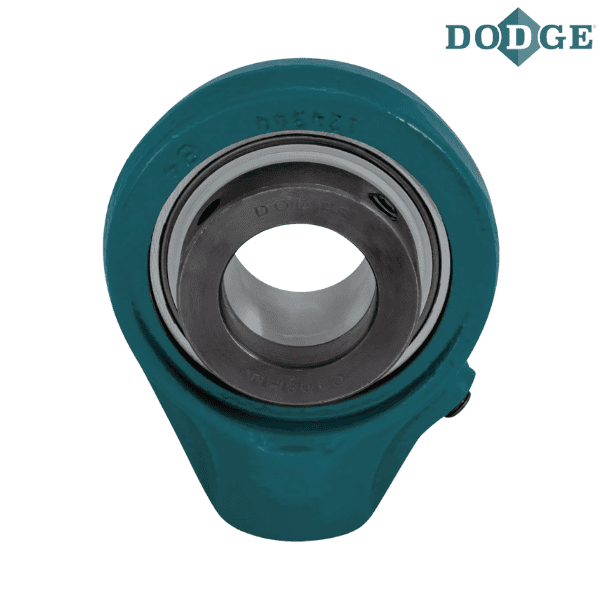

** Images are for representation purposes only
