Description
Brand - DODGE
Item Number - 131243 DODGE - WSTU-SXV-102
Category - Eccentric SXV Collar Ball Bearings (SXV Intermediate Duty Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - WSTU-SXV-102
Weight (lbs) - 2.8
Take- Up Frame Size - WS308

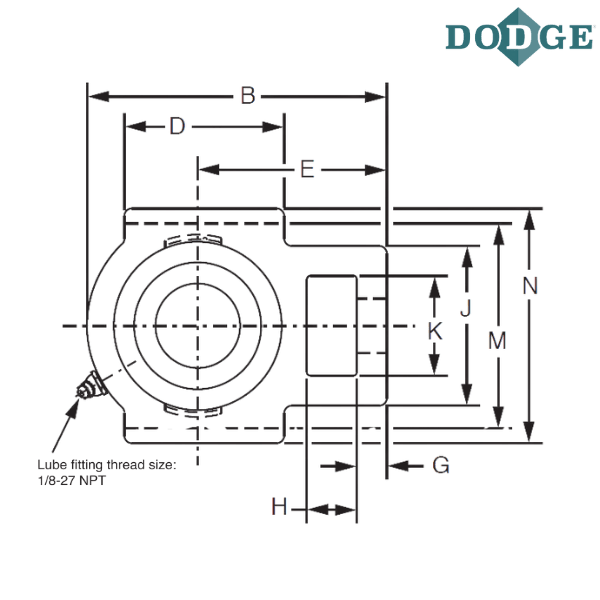

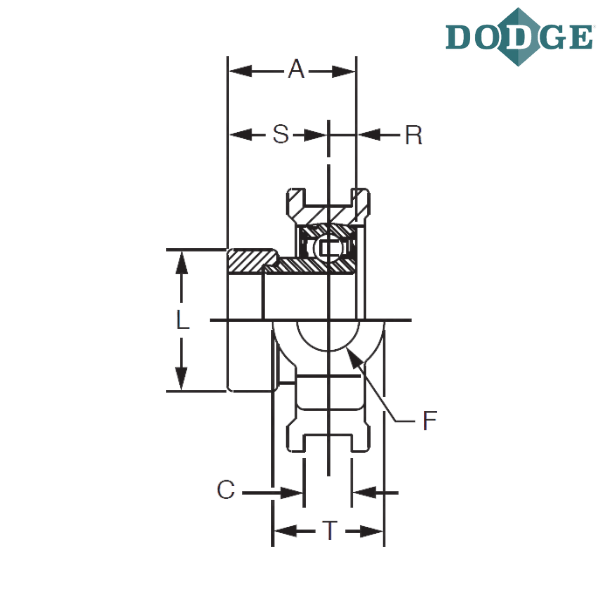

Length Through Bore (A) inch - 1.41
Overall Length (B) inch - 4.38
C (inch) - 0.531
D (inch) - 2.25
E (inch) - 2.75
F (Screw Diameter) inch - 0.75
G (inch) - 0.38
H (inch) - 0.63
J (inch) - 2.19
K (inch) - 1.44
L (inch) - 1.75
M (inch) - 3.480/3.510
Overall Width (N) inch - 4.13
R (inch) - 0.35
S (inch) - 1.05
T (inch) - 1.63
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
SXV - Narrow inner ring, intermediate duty, eccentric locking collar

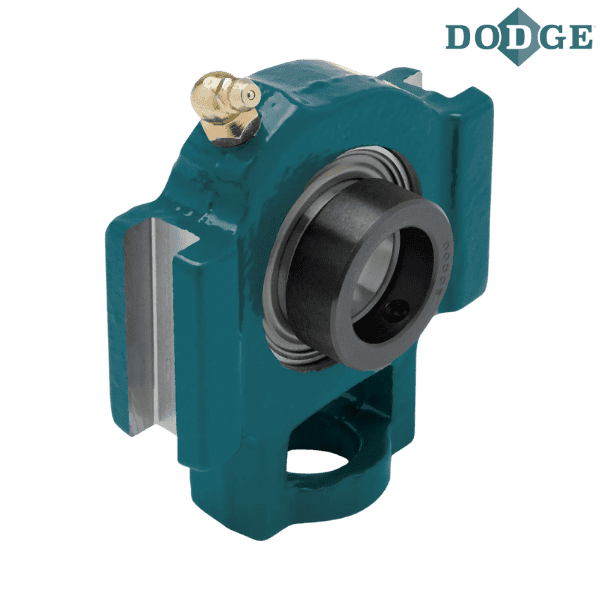

** Images are for representation purposes only
