Description
Brand - NILOS
Item Number - 1312 JV NILOS
Category - NILOS-RING for Double Row Self-Aligning Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 73 mm
Dimension (c) - 102 mm
Outer Diamter (D) - 130 mm
Width (h) - 3 mm
Material Thickness (s) - 0.5 mm

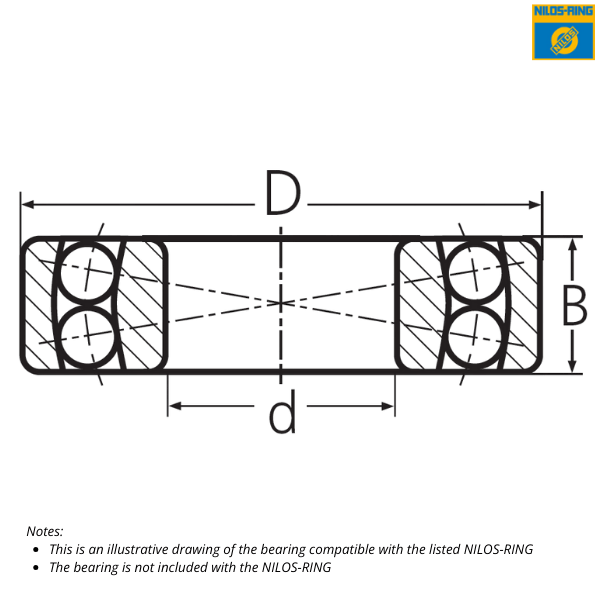

Description of Compatible Bearing (13 Series) :
Bearing Part Number - 1312
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 60 mm
Outer Diameter (D) - 130 mm
Width (B) - 31 mm
♦ ♦ Images are for representation purposes only
Item Number - 1312 JV NILOS
Category - NILOS-RING for Double Row Self-Aligning Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 73 mm
Dimension (c) - 102 mm
Outer Diamter (D) - 130 mm
Width (h) - 3 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (13 Series) :
Bearing Part Number - 1312
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 60 mm
Outer Diameter (D) - 130 mm
Width (B) - 31 mm
♦ ♦ Images are for representation purposes only
