Description

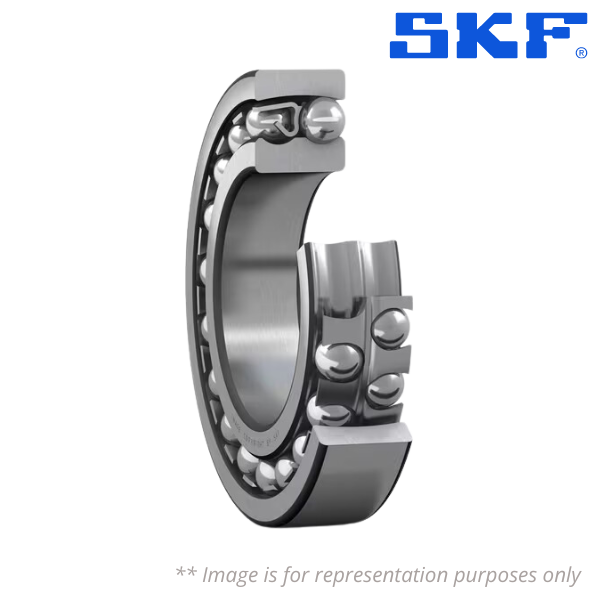

Brand - SKF
Item Number - 1311EKTN9/C3 SKF
Also known as - 1311EKTNGC3 1311-K-TVH-C3
EAN - 7316576625831
Inner (d) MM - 55
Outer (D) MM - 120
Width (B) MM - 29
Inner (d) Inch - 2.1654
Outer (D) Inch - 4.7244
Width (B) Inch - 1.1417
Weight (kg) - 1.56
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
