Description
Brand - DODGE
Item Number - 131170 DODGE - NSTU-SXR-110
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Narrow Slot Take-Up Bearings)
Series - 209
Shaft Size (inch) - 1.625
Description - NSTU-SXR-110
Weight (lbs) - 5.4
Take-Up Frame Size - NS400

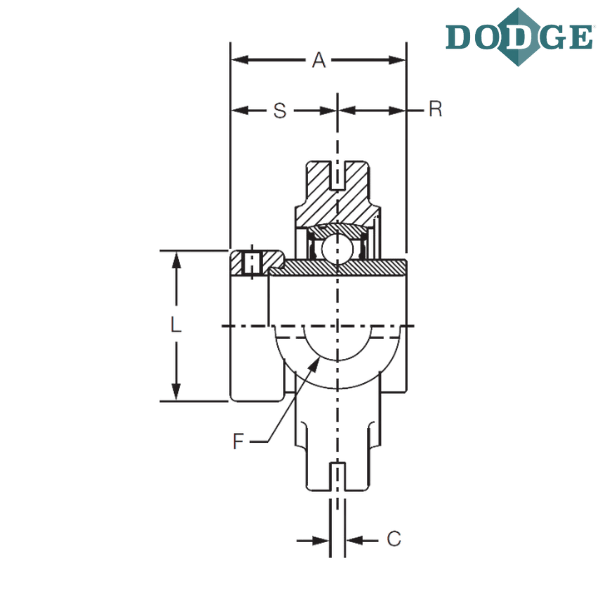

Length Through Bore (A) inch - 2.13

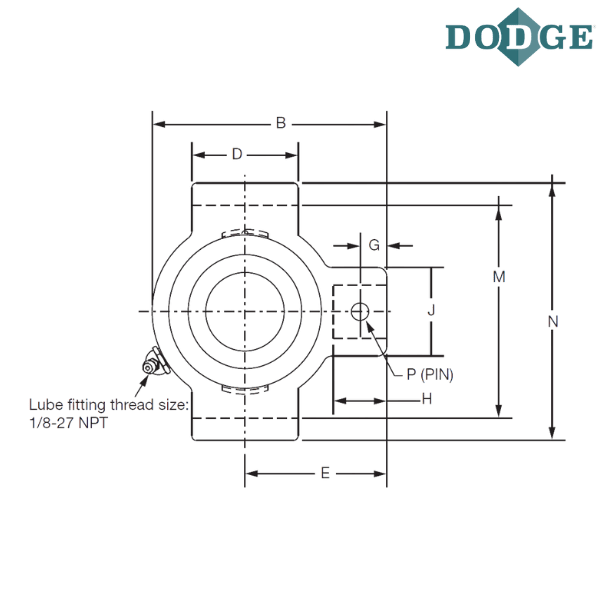

Overall Length (B) inch - 5.44
C (inch) - 0.313
D (inch) - 3
E (inch) - 3.25
F (Screw Diameter) inch - 0.875
G (inch) - 0.72
H (inch) - 1.22
J (inch) - 1.63
L (inch) - 2.5
M (inch) - 4.015/3.985
N (inch) - 4.75
Pin Diameter (P) inch - 0.38
R (inch) - 0.75
S (inch) - 1.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
NSTU - Narrow slot take-up
SXR - Wide inner ring, normal duty, Eccentric locking Collar

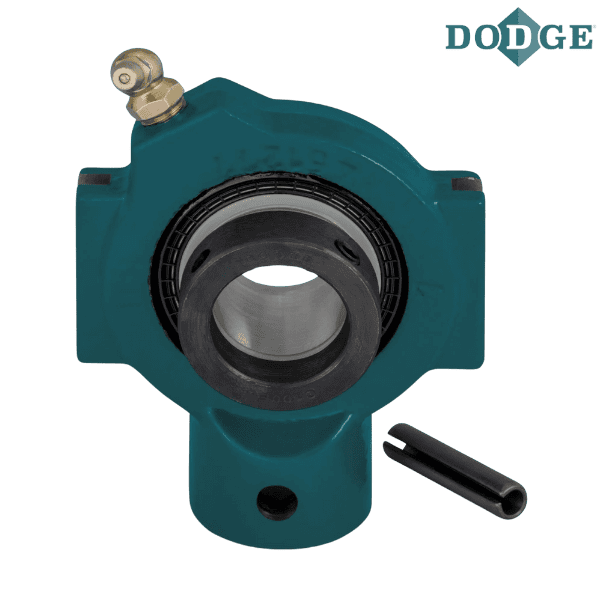

** Images are for representation purposes only
