Description
Brand - DODGE
Item Number - 131156 DODGE - NSTU-SXR-014
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Narrow Slot Take-Up Bearings)
Series - 205
Shaft Size (inch) - 0.875
Description - NSTU-SXR-014
Weight (lbs) - 1.7
Take-Up Frame Size - NS210

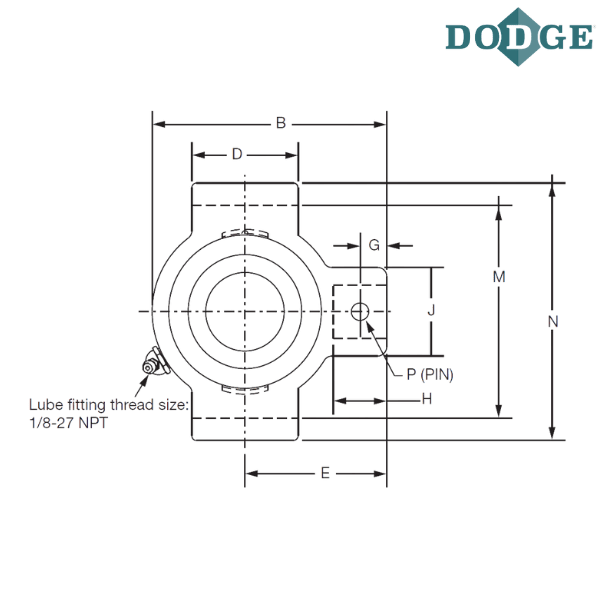

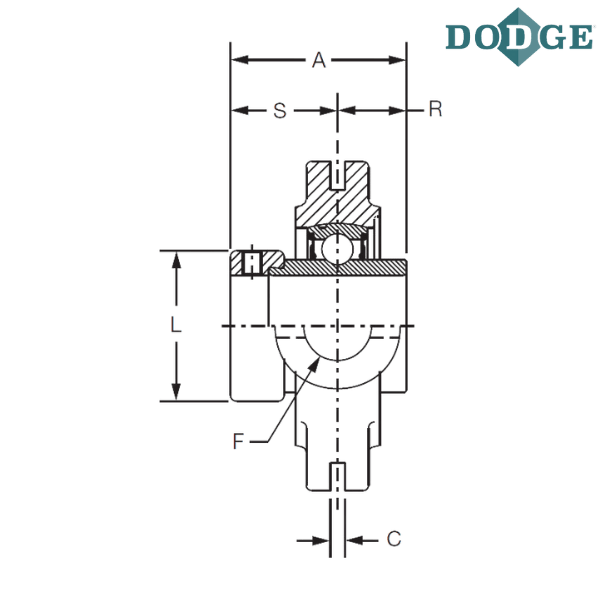

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 3.56
C (inch) - 0.25
D (inch) - 1.5
E (inch) - 2.19
F (Screw Diameter) inch - 0.75
G (inch) - 0.44
H (inch) - 0.88
J (inch) - 1.38
L (inch) - 1.5
M (inch) - 2.635/2.605
N (inch) - 3.13
Pin Diameter (P) inch - 0.32
R (inch) - 0.56
S (inch) - 1.06
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
NSTU - Narrow slot take-up
SXR - Wide inner ring, normal duty, Eccentric locking Collar

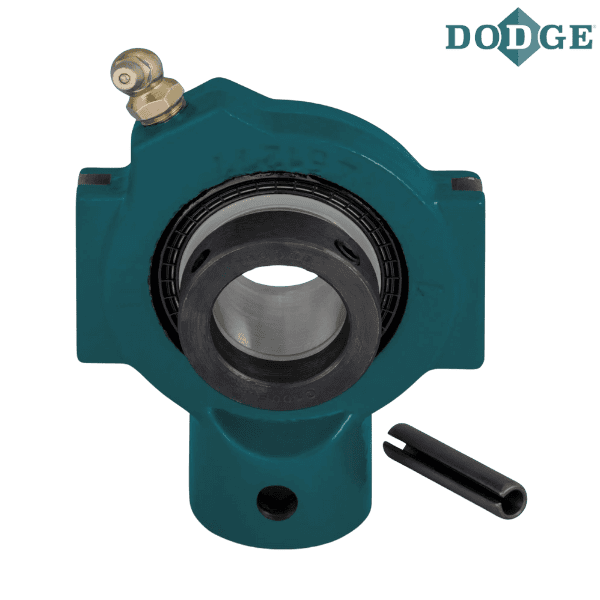

** Images are for representation purposes only
