Description
Brand - DODGE

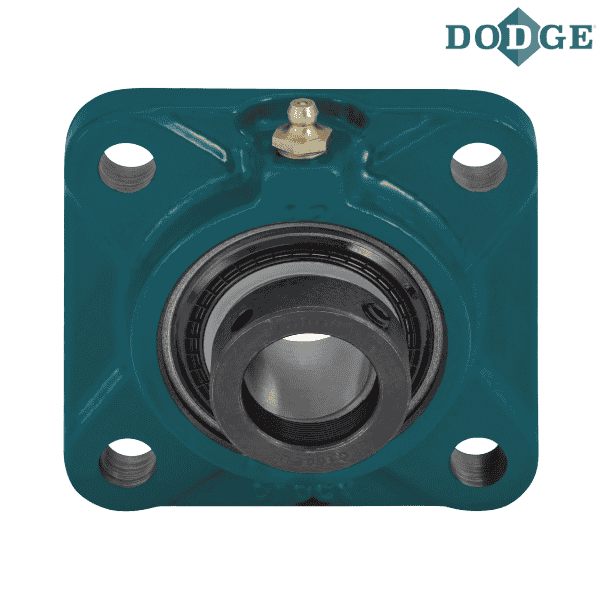

Item Number - 131137 DODGE - F4B-SXR-215
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 215
Shaft Size (inch) - 2.9375
Description - F4B-SXR-215
Description (With Flingers) - F4B-SXR-215-FF
Weight (lbs) - 18.2

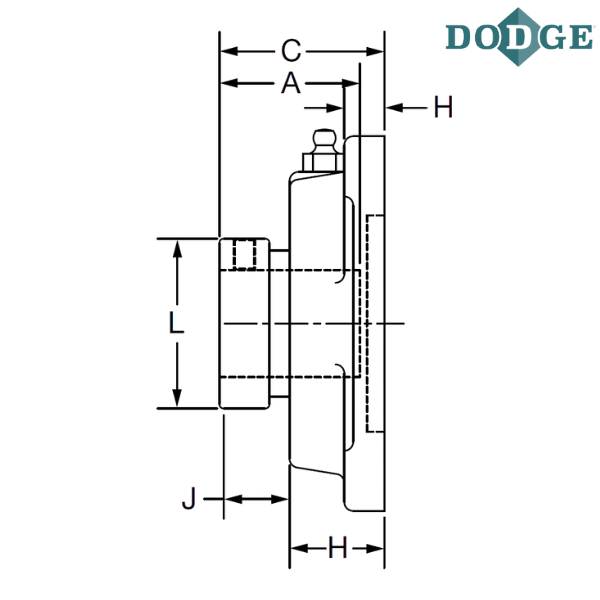

Length Through Bore (A) inch - 3.02
Overall Length (B) inch - 7.75
Thickness (C) inch - 3.58
Bolt Center to Center Length (D) inch - 6
F-Bolt Diameter (inch) - 0.75
H (inch) - 1
J (inch) - 1.33
L (inch) - 4
N (inch) - 3.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
** Images are for representation purposes only
