131135 DODGE - F4B-SXR-207


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131135 DODGE - F4B-SXR-207
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 212
Shaft Size (inch) - 2.4375
Description - F4B-SXR-207
Description (With Flingers) - F4B-SXR-207-FF
Weight (lbs) - 11.3

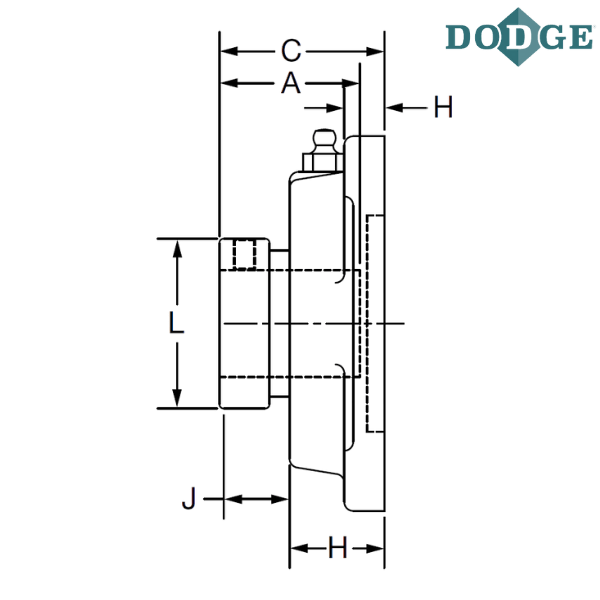

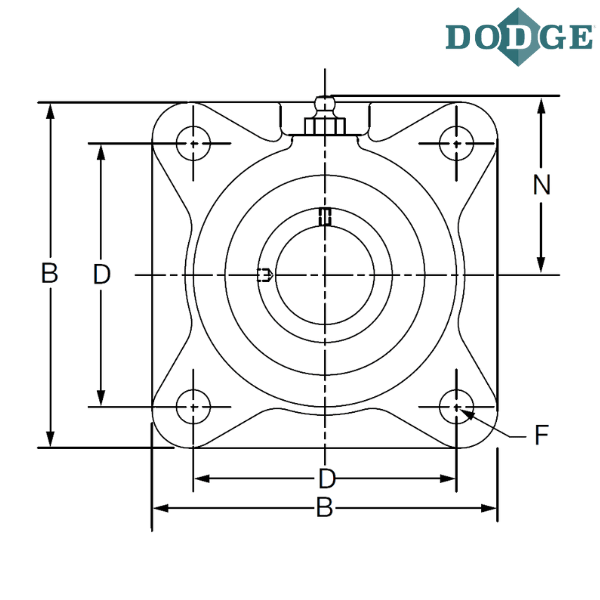

Length Through Bore (A) inch - 2.74
Overall Length (B) inch - 6.88
Thickness (C) inch - 2.81
Bolt Center to Center Length (D) inch - 5.63
F-Bolt Diameter (inch) - 0.625
H (inch) - 0.69
J (inch) - 1.1
L (inch) - 3.31
N (inch) - 3.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

** Images are for representation purposes only
