Description
Brand - DODGE
Item Number - 131117 DODGE - F4B-SXR-108
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F4B-SXR-108
Description (With Flingers) - F4B-SXR-108-FF
Weight (lbs) - 5.1

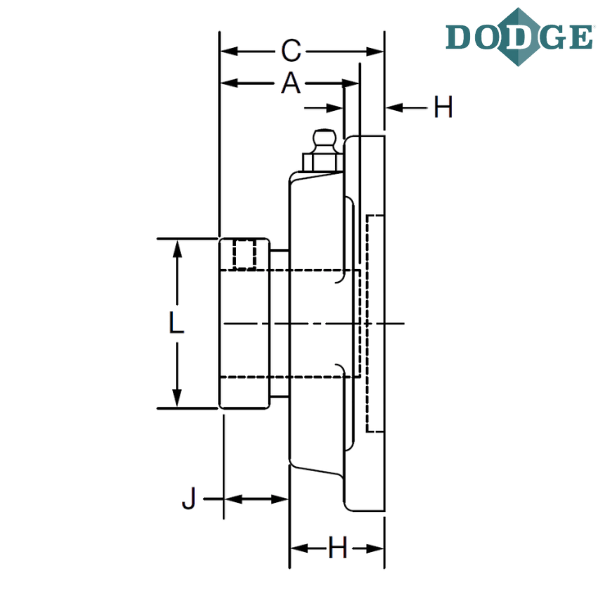

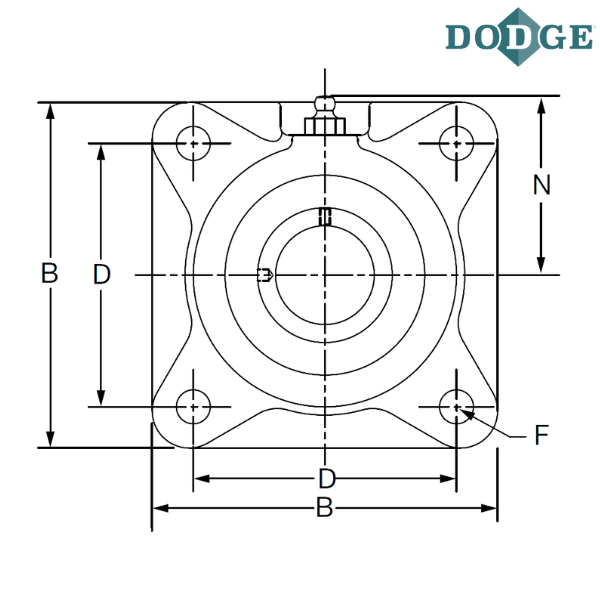

Length Through Bore (A) inch - 2.12
Overall Length (B) inch - 5.13
Thickness (C) inch - 2.15
Bolt Center to Center Length (D) inch - 4
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.81
L (inch) - 2.38
N (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar
** Images are for representation purposes only
