131114 DODGE - F4B-SXR-105


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 131114 DODGE - F4B-SXR-105
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.3125
Description - F4B-SXR-105
Description (With Flingers) - F4B-SXR-105-FF
Weight (lbs) - 4.1

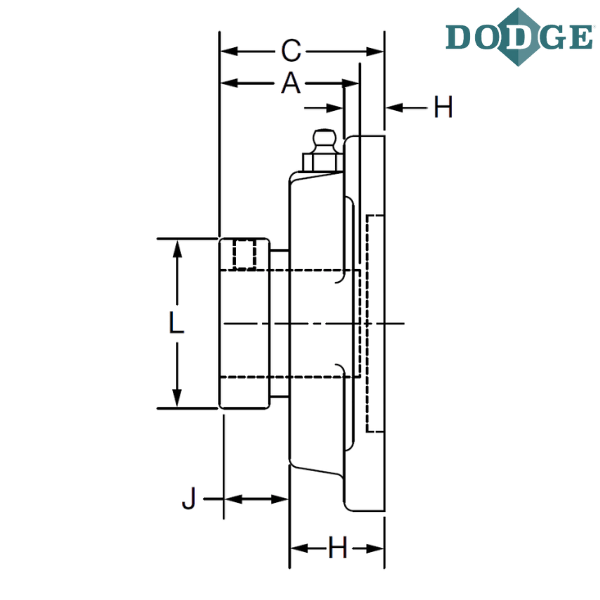

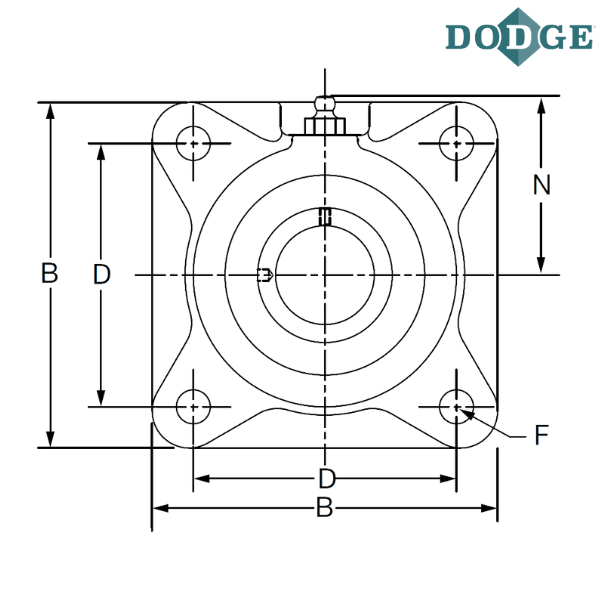

Length Through Bore (A) inch - 1.95
Overall Length (B) inch - 4.75
Thickness (C) inch - 1.99
Bolt Center to Center Length (D) inch - 3.63
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.77
L (inch) - 2.13
N (inch) - 2.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

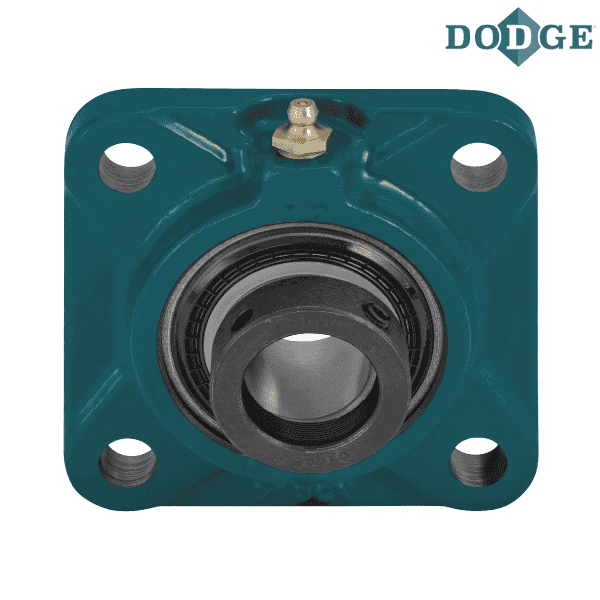

** Images are for representation purposes only
