Description
Brand - DODGE
Item Number - 131104 DODGE - F4B-SXR-012
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 4-Bolt Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - F4B-SXR-012
Description (With Flingers) - F4B-SXR-012-FF
Weight (lbs) - 1.6

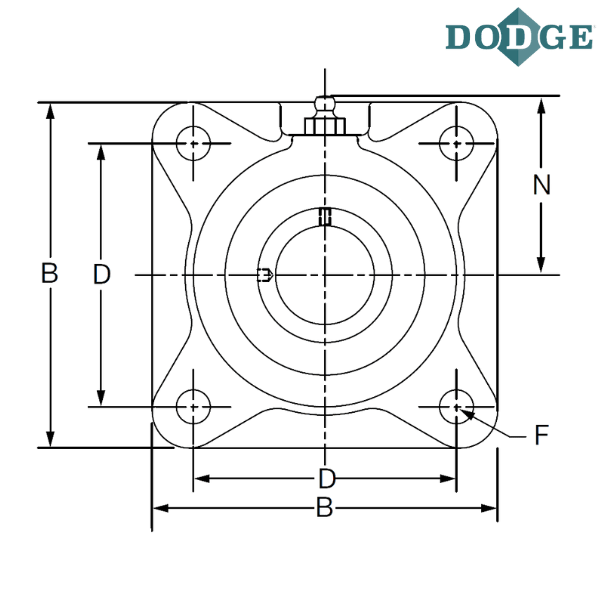

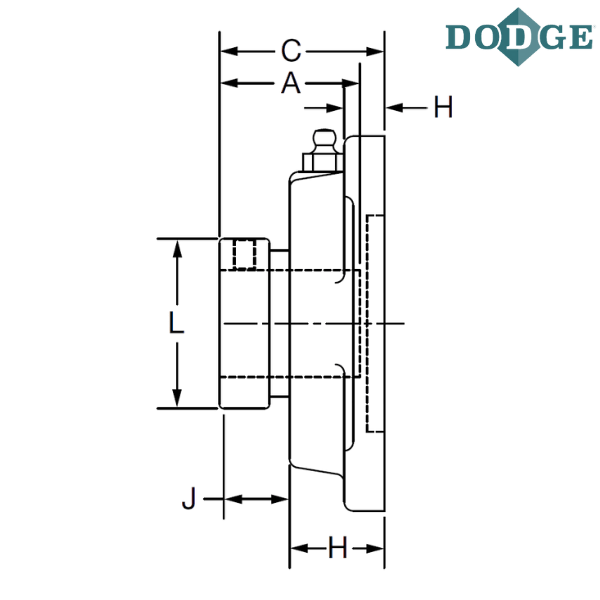

Length Through Bore (A) inch - 1.55
Overall Length (B) inch - 3.38
Thickness (C) inch - 1.66
Bolt Center to Center Length (D) inch - 2.5
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.44
J (inch) - 0.68
L (inch) - 1.31
N (inch) - 1.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

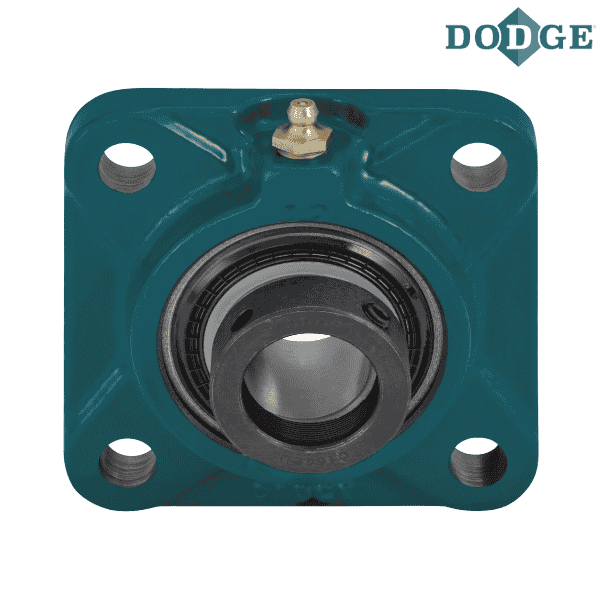

** Images are for representation purposes only
