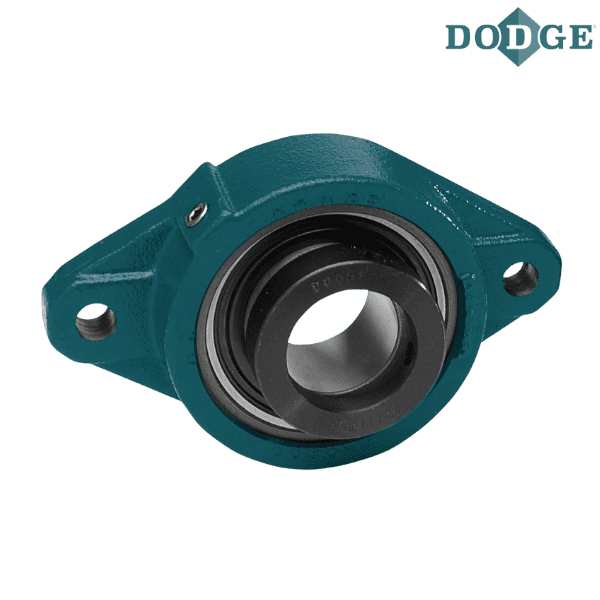

131077 DODGE - F2B-SXR-200

Brand - DODGE
Item Number - 131077 DODGE - F2B-SXR-200
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 210
Shaft Size (inch) - 2
Description - F2B-SXR-200
Description (No Lube/Sealed for Life) - F2B-SXR-200-NL
Description (With Flingers) - F2B-SXR-200-FF
Weight (lbs) - 5.6

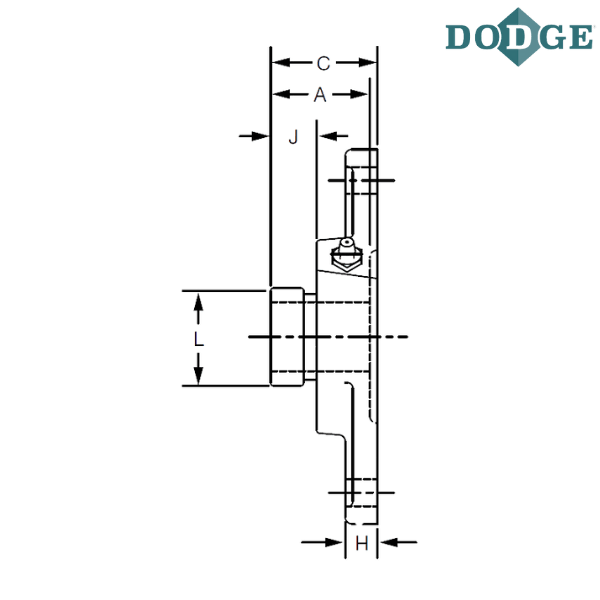

Length Through Bore (A) inch - 2.25

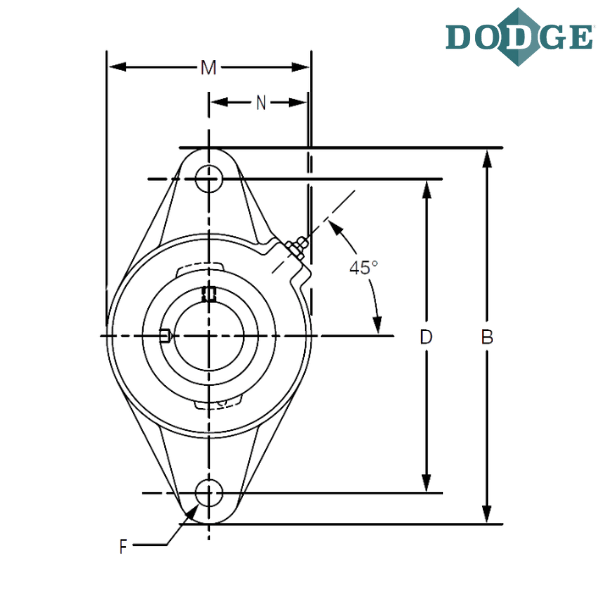

Overall Length (B) inch - 7.44
Thickness (C) inch - 2.33
Bolt Center to Center Length (D) inch - 6.19
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.86
L (inch) - 2.75
Overall Width (M) inch - 4.56
N (inch) - 2.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

** Images are for representation purposes only
