131070 DODGE - F2B-SXR-110

Brand - DODGE
Item Number - 131070 DODGE - F2B-SXR-110
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 209
Shaft Size (inch) - 1.625
Description - F2B-SXR-110
Description (No Lube/Sealed for Life) - F2B-SXR-110-NL
Description (With Flingers) - F2B-SXR-110-FF
Weight (lbs) - 5.3

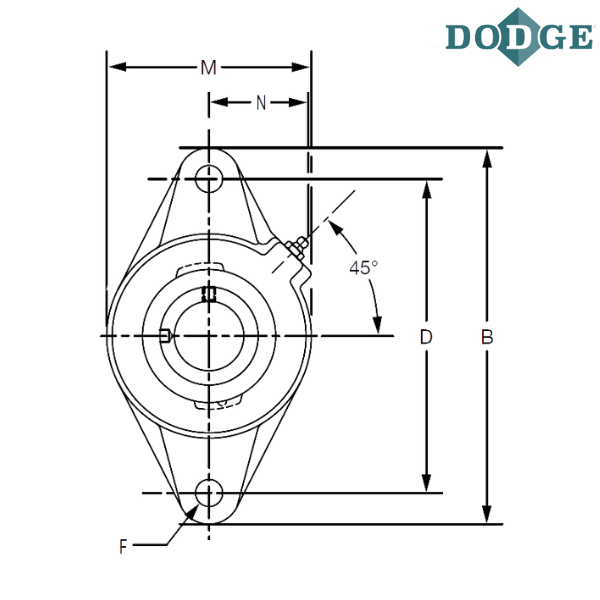

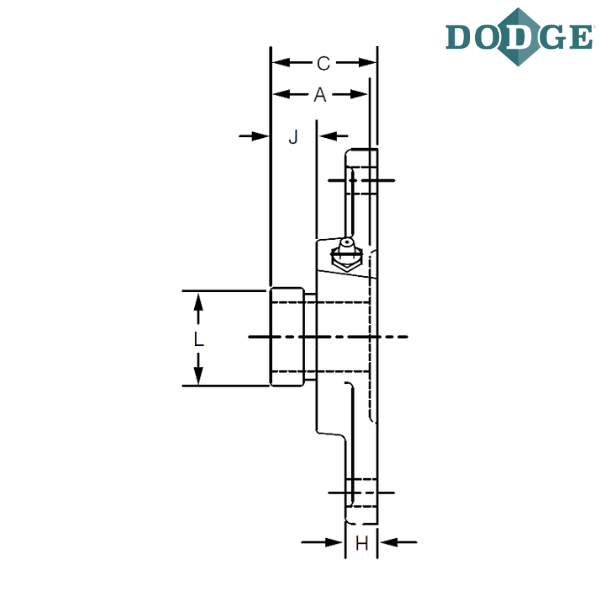

Length Through Bore (A) inch - 2.13
Overall Length (B) inch - 7.06
Thickness (C) inch - 2.18
Bolt Center to Center Length (D) inch - 5.84
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.63
J (inch) - 0.77
L (inch) - 2.5
Overall Width (M) inch - 4.38
N (inch) - 1.91
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

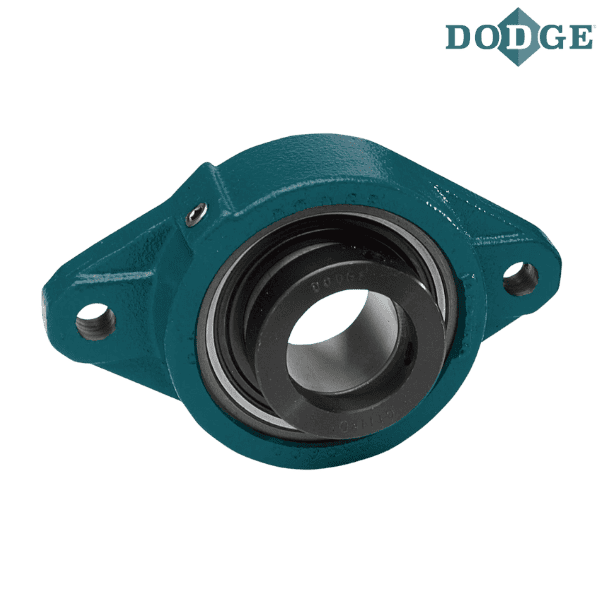

** Images are for representation purposes only
