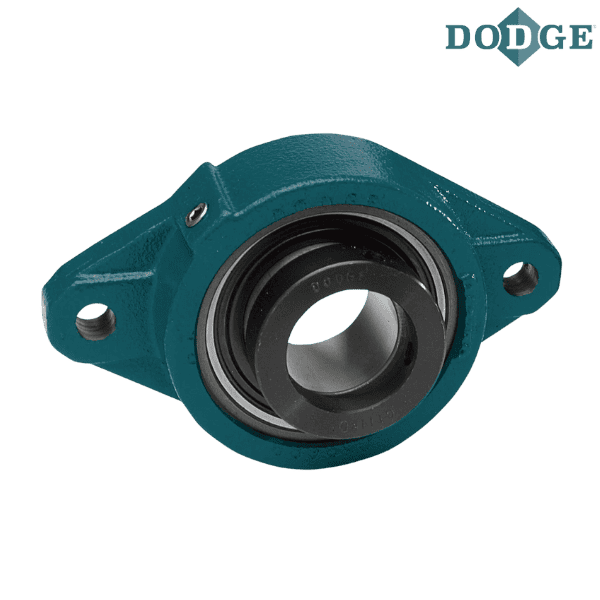

131067 DODGE - F2B-SXR-108

Brand - DODGE
Item Number - 131067 DODGE - F2B-SXR-108
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F2B-SXR-108
Description (No Lube/Sealed for Life) - F2B-SXR-108-NL
Part Number (With Flingers) - 068214
Description (With Flingers) - F2B-SXR-108-FF
Weight (lbs) - 4.3

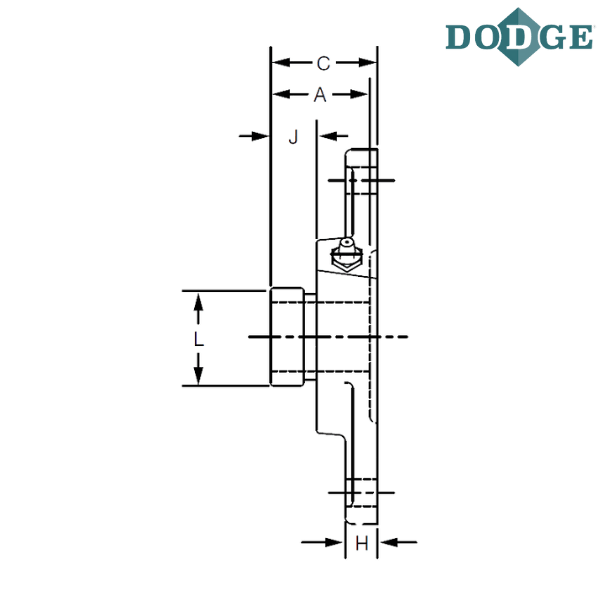

Length Through Bore (A) inch - 2.12

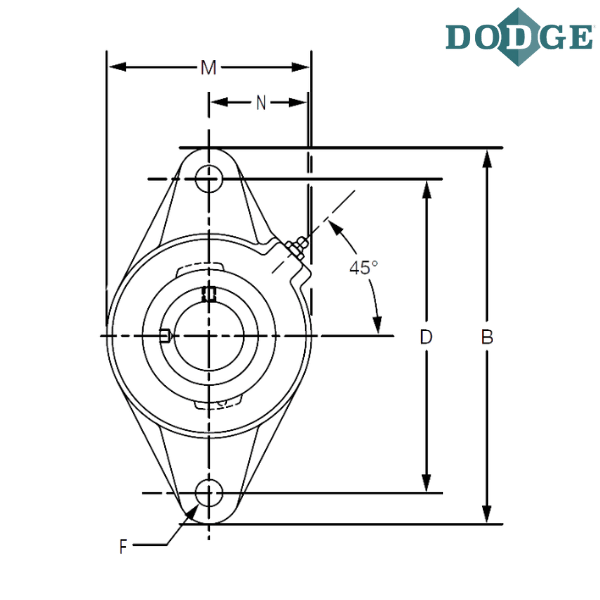

Overall Length (B) inch - 6.75
Thickness (C) inch - 2.15
Bolt Center to Center Length (D) inch - 5.66
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.81
L (inch) - 2.38
Overall Width (M) inch - 4.13
N (inch) - 1.83
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

** Images are for representation purposes only
