131063 DODGE - F2B-SXR-104

Brand - DODGE
Item Number - 131063 DODGE - F2B-SXR-104

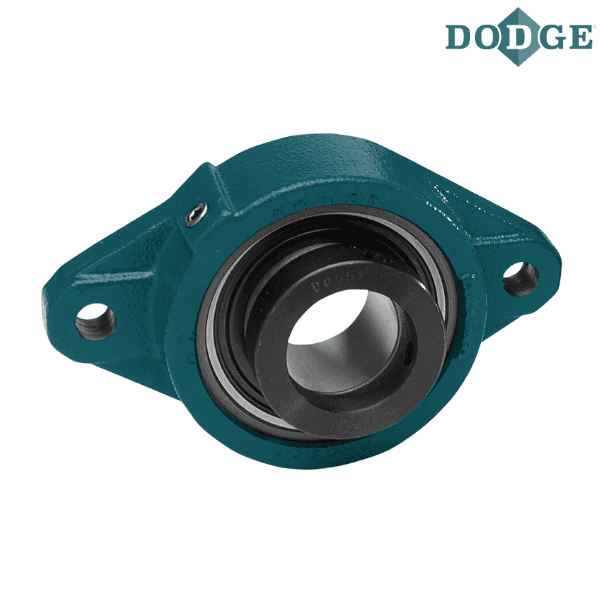

Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.25
Description - F2B-SXR-104
Description (No Lube/Sealed for Life) - F2B-SXR-104-NL
Part Number (With Flingers) - 130880
Description (With Flingers) - F2B-SXR-104-FF
Weight (lbs) - 3.6

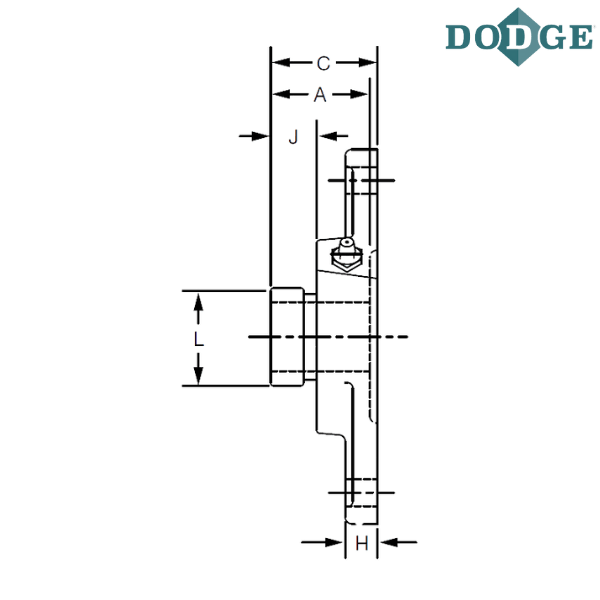

Length Through Bore (A) inch - 1.95

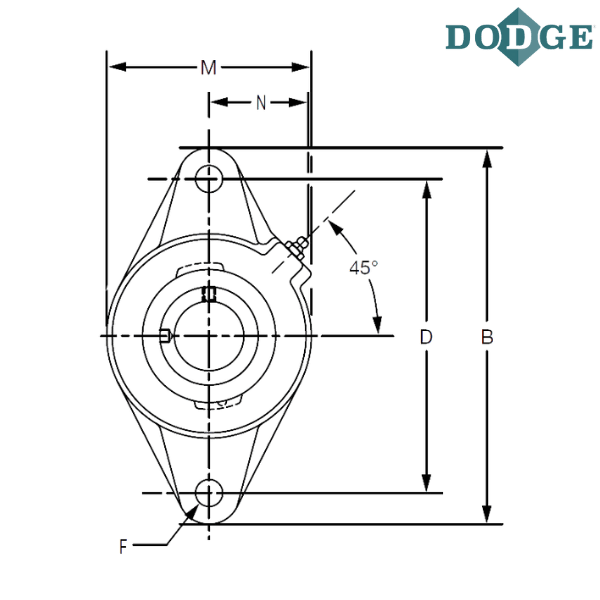

Overall Length (B) inch - 6.13
Thickness (C) inch - 1.99
Bolt Center to Center Length (D) inch - 5.12
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.56
J (inch) - 0.77
L (inch) - 2.13
Overall Width (M) inch - 3.75
N (inch) - 1.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

** Images are for representation purposes only
