131060 DODGE - F2B-SXR-102

Brand - DODGE
Item Number - 131060 DODGE - F2B-SXR-102
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - F2B-SXR-102
Description (No Lube/Sealed for Life) - F2B-SXR-102-NL
Description (With Flingers) - F2B-SXR-102-FF
Weight (lbs) - 2.3

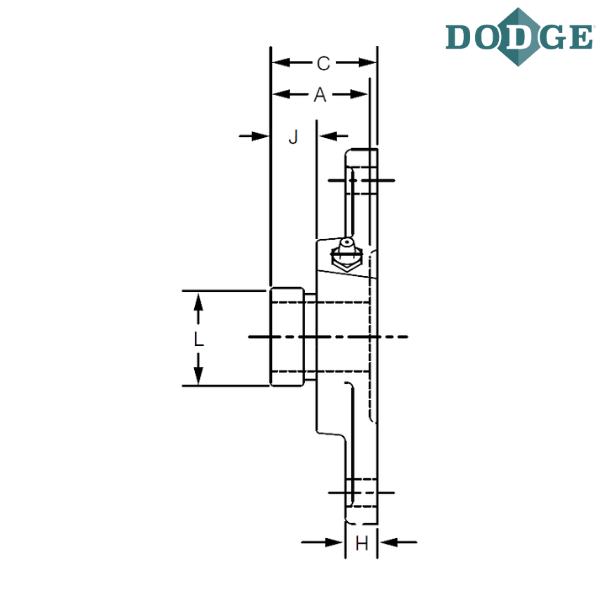

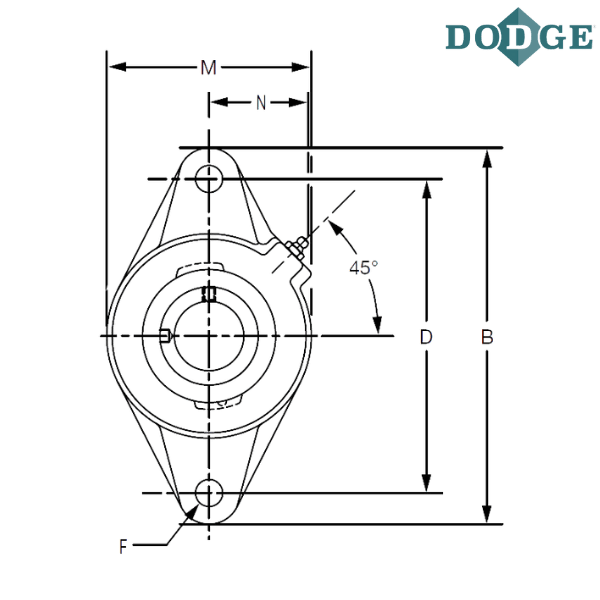

Length Through Bore (A) inch - 1.77
Overall Length (B) inch - 5.56
Thickness (C) inch - 1.81
Bolt Center to Center Length (D) inch - 4.59
F-Bolt Diameter (inch) - 0.4375
H (inch) - 0.5
J (inch) - 0.74
L (inch) - 1.75
Overall Width (M) inch - 3.13
N (inch) - 1.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2B - 2 bolt flange
SXR - Wide inner ring, normal duty, Eccentric locking Collar

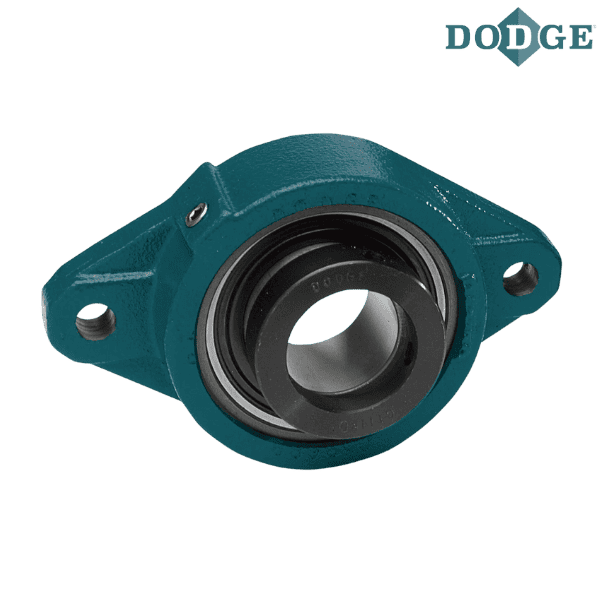

** Images are for representation purposes only
